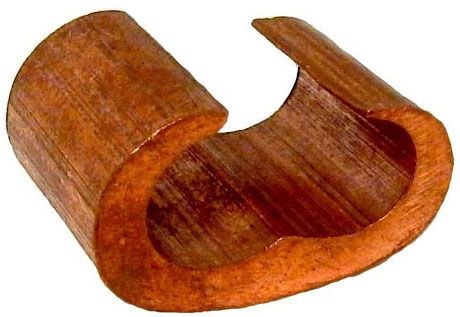

Morris 91817 Copper C-Tap, 2 AWG - 500 MCM, White Die

Product Overview

The Morris 91817 is a copper C-tap compression connector for copper-to-copper tapping, splicing, and stub or pigtail connections. Its stated conductor range is 2 AWG–500 MCM.

Made of high-strength electrolytic copper, the C-tap secures run and tap conductors in a single die crimp. It is intended for indoor and aboveground applications and is not listed for direct burial, grounding, or bonding.

Key Features

• Copper-to-copper tapping, splicing, and stub or pigtail connections
• High-strength electrolytic copper construction
• Single die crimp for run and tap conductors
• White die color

Copper-to-copper tap and splice connections

The Morris 91817 is designed for copper-to-copper tapping, splicing, and stub or pigtail connections. It allows two continuous parallel conductors and secures the run and tap conductors in a single die crimp.

Conductor range and crimp configuration

This C-tap is specified for conductors in the 2 AWG–500 MCM range. Installation instructions call for positioning the run and tap conductors in the connector and compressing it with a white die using a hydraulic or battery-powered crimp tool.

Where the Morris 91817 is intended to be used

The connector is described for indoor and aboveground copper-to-copper tap and splice connections. It is not listed for direct burial, grounding, or bonding.

Before You Order

Confirm the model number and quantity required before ordering.
