Morris 91815 Copper C-Tap, 6 AWG - 350 MCM, Brown Die

Product Overview

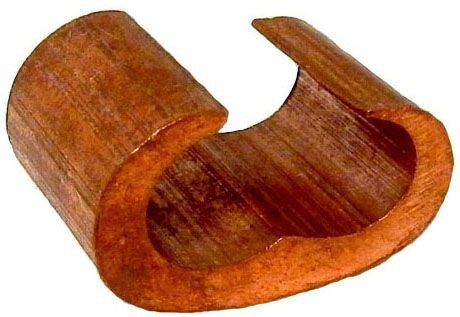

The Morris 91815 is a copper C-tap compression connector for copper-to-copper tapping, splicing, and stub or pigtail connections. Its conductor range is 6 AWG to 350 MCM.

Made from high-strength electrolytic copper, the connector secures run and tap conductors in a single die crimp. It has a brown die color and is listed to UL 467 and CSA C22.2 No. 41.

Key Features

• For copper-to-copper tap, splice, stub, and pigtail connections
• 6 AWG–350 MCM conductor range
• High-strength electrolytic copper construction
• Brown die color
• Listed to UL 467 and CSA C22.2 No. 41; suitable for direct burial in soil and concrete

Copper-to-Copper Taps, Splices, and Stub Connections

The Morris 91815 C-tap joins copper conductors for tap, splice, or stub and pigtail connections. The connector is designed to secure run and tap conductors in a single die crimp and allows for two continuous parallel conductors.

Conductor Range and Crimping

This connector covers a 6 AWG to 350 MCM conductor range and has a brown die color. Installation instructions specify positioning the run and tap conductors in the C-tap and compressing it with a brown die using a hydraulic or battery-powered crimp tool.

Listings and Direct-Burial Use

The 91815 is listed to UL 467 and CSA C22.2 No. 41. It is identified as suitable for grounding and bonding, including direct burial in soil and concrete.

Before You Order

Confirm the model number and quantity required before ordering.
