Morris 91813 Copper C-Tap, 8 AWG - 250 MCM, Blue Die

Product Overview

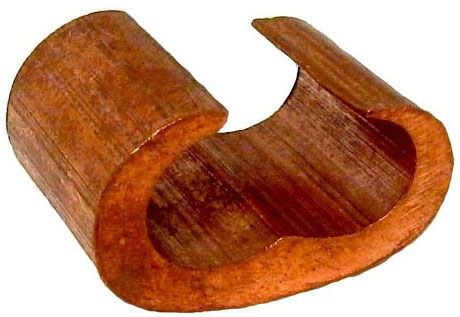

The Morris 91813 is a copper C-tap compression connector for copper-to-copper tapping, splicing, and stub or pigtail connections. It accepts conductors in the 8 AWG–250 MCM range.

Made from high-strength electrolytic copper, the connector secures a run and tap conductor in a single die crimp. It has a blue die color and is listed to UL 467 and CSA C22.2 No. 41.

Key Features

• For copper-to-copper taps, splices, and stub or pigtail connections
• Conductor range: 8 AWG–250 MCM
• High-strength electrolytic copper construction
• Blue die color; supports two continuous parallel conductors
• Listed to UL 467 and CSA C22.2 No. 41; suitable for direct burial in soil and concrete

Copper-to-Copper Taps, Splices, and Stub Connections

The Morris 91813 C-tap is designed for copper-to-copper tapping, splicing, and stub or pigtail connections. It secures a run conductor and a tap conductor in a single die crimp and allows for two continuous parallel conductors.

Conductor Range and Blue Die

This connector covers a conductor range of 8 AWG–250 MCM and is identified with a blue die color. Position the run and tap conductors in the C-tap and compress it with the blue die using a hydraulic or battery-powered crimp tool.

Grounding, Bonding, and Direct Burial

The Morris 91813 is listed to UL 467 and CSA C22.2 No. 41 and is suitable for grounding and bonding. It is specified for direct burial in soil and concrete.

Before You Order

Confirm the conductor sizes are within the 8 AWG–250 MCM range and that the blue die matches the crimping setup for this connector.
