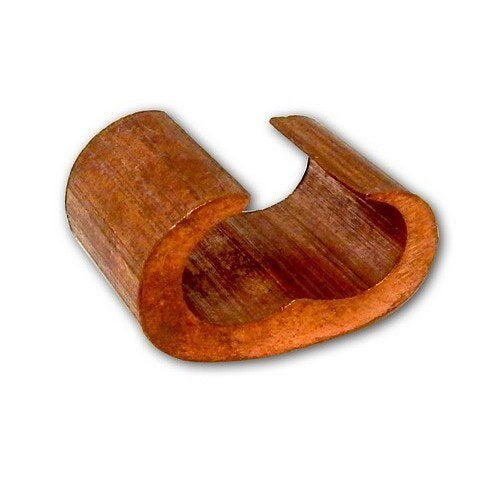

Morris 91812 Copper C-Tap, 8-4/0 AWG, Yellow Die
Description
Product Overview
The Morris 91812 is a copper C-tap compression connector for copper-to-copper tapping, splicing, and stub or pigtail connections. It accepts conductors in the 8-4/0 AWG range.
Made from high-strength electrolytic copper, the connector secures a run and tap conductor in a single die crimp. Its yellow die identification and listed direct-burial suitability make it a specified option for grounding and bonding connections.
Key Features
- For copper-to-copper tap, splice, and stub or pigtail connections
- 8-4/0 AWG conductor range
- High-strength electrolytic copper construction
- Yellow die identification
- UL 467 listed and CSA C22.2 No. 41
- Suitable for direct burial in soil and concrete
Copper-to-Copper Tap and Splice Connections
The Morris 91812 makes copper-to-copper tap, splice, and stub or pigtail connections. Its C-tap design secures a run and tap conductor in a single die crimp and allows two continuous parallel conductors.
Conductor Range and Die Identification
This connector is specified for copper conductors from 8 through 4/0 AWG. The identified die color for the Morris 91812 is yellow.
Grounding, Bonding, and Direct Burial
The Morris 91812 is UL 467 listed and conforms to CSA C22.2 No. 41. It is identified as suitable for grounding and bonding, including direct burial in soil and concrete.
Crimping the Morris 91812
Position the run and tap conductors in the C-tap and compress it with a yellow die. The stated tool options are a hydraulic or battery-powered crimp tool.
Before You Order
Confirm the conductor sizes are within the 8-4/0 AWG range and that the yellow die identification matches your crimping requirements.
- Confirm the model number and quantity required before ordering.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Morris 91812 Copper C-Tap, 8-4/0 AWG, Yellow Die. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Morris |
|---|---|
| Catalog Number | 91812 |
| Product Type | Copper C-tap compression connector |
| Wire Range | 8-4/0 AWG |
| Material | High-strength electrolytic copper |
| Die Color Code | Yellow |
| Listings | UL 467; CSA C22.2 No. 41 |
| Direct Burial | Suitable for soil and concrete |
