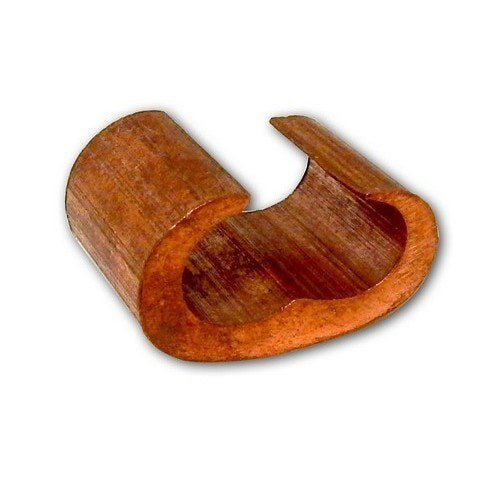

Morris 91810 Copper C-Tap, 4-2/0 AWG, Purple Die

Product Overview

The Morris 91810 is a copper C‑tap compression connector designed for copper‑to‑copper tapping, splicing, and making stubs or pigtails across a 4–2/0 AWG conductor range.

Made from high‑strength electrolytic copper and sized for a single die crimp (Purple die), the 91810 is UL467 listed and CSA C22.2 No.41 certified for grounding/bonding and is suitable for direct burial in soil and concrete.

Key Features

• Connector type: Copper C‑Tap for tap, splice, or stub/pigtail connections
• Conductor range: 4 to 2/0 AWG (copper conductors)
• Material: High‑strength electrolytic copper
• Crimp die: Purple die (single die crimp)
• Listings: UL467 and CSA C22.2 No.41
• Environmental suitability: Suitable for direct burial in soil and concrete
• Allows two continuous parallel run conductors where applicable

What this connector does

The Morris 91810 C‑Tap is a compression connector that secures a run conductor and a tap conductor in a single crimp. It is intended for copper‑to‑copper tapping, splicing, or creating a stub/pigtail connection within the specified conductor range.

• Single die (Purple) crimp secures run and tap in one operation
• Permits two continuous parallel conductors where required

Where to use it

Use the 91810 for grounding, bonding, and power distribution applications that require a copper C‑tap. The connector is listed for use in direct burial environments, including soil and concrete.

• Grounding and bonding connections
• Power distribution taps and splices
• Direct burial installations (soil and concrete) per listing

How it is installed

Install the 91810 by positioning the run and tap conductors in the C‑tap and compressing the connector with the Purple die using an appropriate hydraulic or battery‑powered crimp tool.

• Position run and tap conductors in the C‑tap cavity
• Use a Purple die sized to this connector on a compatible crimp tool
• Perform a single compression crimp to complete the connection

Technical specifications and compliance

The following specifications and listings describe the 91810 connector and its verified capabilities.

• Catalog number: 91810
• Conductor range: 4–2/0 AWG (copper conductors)
• Material: High‑strength electrolytic copper
• Die color: Purple
• Listings: UL467 and CSA C22.2 No.41
• Direct burial: Yes — suitable for soil and concrete

Before You Order

Confirm the model number and conductor sizes required before ordering to ensure compatibility with your run and tap conductors.

• Verify both run and tap conductors are copper and fall within the 4–2/0 AWG range.
• Specify the quantity required and confirm the appropriate crimp tooling (Purple die) is available for installation.
