Morris 91809 Copper C-Tap, 4-1/0 AWG, Orange Die

Product Overview

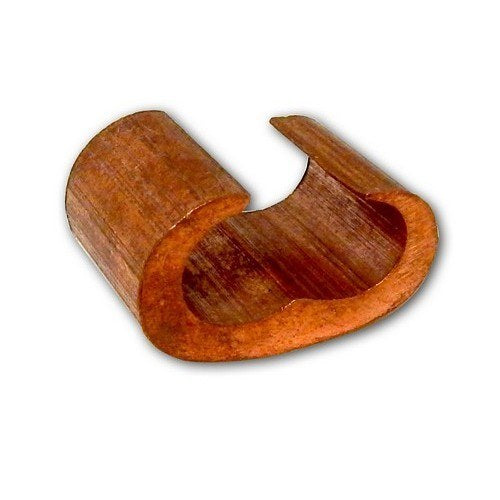

The Morris 91809 is a copper C-tap compression connector for copper-to-copper tapping, splicing, and creating a stub or pigtail from a run conductor across a 4–1/0 AWG conductor range.

Constructed of high-strength electrolytic copper and using the Orange die, this connector secures the run and tap conductor in a single die crimp and accepts two continuous parallel conductors where required. It is listed to UL467 and CSA C22.2 No.41 and is suitable for direct burial in soil and concrete.

Key Features

• Conductor range: 4–1/0 AWG (copper-to-copper)
• High-strength electrolytic copper construction
• Single-die compression for run and tap conductors
• Accepts two continuous parallel conductors
• UL467 and CSA C22.2 No.41 listed
• Suitable for direct burial in soil and concrete
• Orange die color

Function and intended use

The Morris 91809 is a C-tap compression connector intended for copper-to-copper tapping, splicing, and for creating a stub or pigtail from a run conductor within the 4–1/0 AWG range.

• Secures a run and tap conductor in a single die crimp.
• Can accept two continuous parallel conductors.

Applications

Use this connector for grounding, bonding, and power distribution connections where copper conductors in the specified range require tapping, splicing, or stubbing. The product is listed for use in applications covered by UL467 and CSA C22.2 No.41 and is suitable for direct burial in soil and concrete.

• Grounding and bonding systems
• Power distribution tapping and splicing
• Direct burial installations in soil and concrete

Installation and tooling

Position the run and tap conductors in the C-tap body and complete a compression using the Orange die. Use a hydraulic or battery-powered crimp tool that accepts the Orange die and is appropriate for the conductor size.

• Place conductors fully into the C-tap before crimping.
• Compress with the Orange die using a compatible hydraulic or battery-powered crimp tool.

Listings and environmental suitability

The 91809 is listed to UL467 and CSA C22.2 No.41, and the connector is suitable for direct burial in soil and concrete as indicated by the product information.

• UL467 listed
• CSA C22.2 No.41 listed
• Suitable for direct burial (soil and concrete)

Key specifications

Core specifications for this SKU are listed below for quick reference.

• Brand: Morris
• Catalog No.: 91809
• Type: Copper C-Tap
• Conductor Range: 4–1/0 AWG (copper-to-copper)
• Material: High-strength electrolytic copper
• Die Color: Orange
• Listings: UL467, CSA C22.2 No.41
• Direct Burial: Suitable for soil and concrete

Before You Order

Confirm the conductor sizes and that conductors are copper before ordering.

• Verify conductors are copper and within the 4–1/0 AWG range.
• Ensure you have a compatible hydraulic or battery crimp tool and the Orange die.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 91809 Copper C-Tap, 4-1/0 AWG, Orange Die. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
