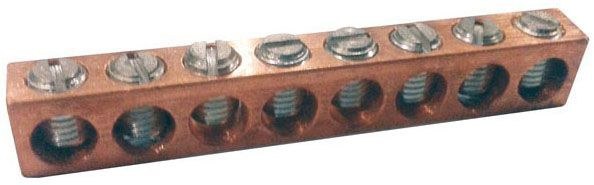

Morris 91154 Copper Neutral/Ground Bar, 6-Circuit, #14-#4 AWG

Product Overview

The Morris 91154 is a machined copper neutral/ground bar with six circuits (eight total holes) for terminating grounded (neutral) or grounding conductors. It accepts #14–#4 AWG copper conductors and is rated 600V.

The bar is range-taking and has mounting hole positions at holes 1 and 8.

Key Features

• Machined copper construction — for copper conductors only
• Six-circuit configuration with eight total termination holes
• Range-taking wire capacity: #14–#4 AWG
• 600V voltage rating
• Length: 2.56"
• Mounting hole positions: 1 & 8

Function and intended use

The Morris 91154 is intended to provide termination points for multiple grounded (neutral) or grounding (equipment-ground) conductors inside panelboards, load centers, meter sockets and enclosures.

• Six circuits (eight total holes) for multiple conductor terminations
• Provides consolidation of neutrals or equipment grounds within electrical enclosures

Electrical ratings and conductor compatibility

This bar is specified for use with copper conductors only and accepts a wire size range of #14 through #4 AWG. The product is rated for 600V.

• Wire range: #14–#4 AWG (range-taking)
• Conductor compatibility: copper only
• Voltage rating: 600V

Mounting information

The unit includes mounting hole positions at holes 1 and 8. Termination is provided by the bar's set-screw ports (one conductor per port as provided by the product design).

• Mounting hole positions: 1 & 8
• Total termination holes: 8

Physical dimensions

Length is listed as 2.56". Confirm physical fit within your enclosure prior to installation.

• Length: 2.56"
• Circuits: 6 (8 total holes)

Before You Order

Verify that a copper-only neutral/ground bar with a #14–#4 AWG range and 2.56" length fits your enclosure and meets your project requirements.

• Confirm conductor material (copper conductors only)
• Confirm wire gauge range (#14–#4 AWG)
• Verify mounting hole alignment and physical fit
