Morris 91148 Aluminum Neutral/Ground Bar, 6-Circuit, #14-2/0 AWG

(No Ratings)
SKU: 91148
Price: $28.44
Free shipping on orders over $1,500

Description

Product Overview

The Morris 91148 is an aluminum neutral/ground bar with a 6-circuit configuration and 8 total holes. It is rated for #14-2/0 AWG conductors and 600V.

Its 6060-T6 tin-plated aluminum body is dual rated for copper or aluminum conductors. The bar measures 4.75 inches long, with mounting hole positions 1 and 8.

Key Features

  • Six-circuit configuration with 8 total holes
  • Accepts #14-2/0 AWG conductors
  • Dual rated for copper or aluminum conductors
  • 6060-T6 tin-plated aluminum construction
  • Rated 600V; 4.75-inch length

Neutral and Ground Bar Use

The Morris 91148 is designed to terminate and common multiple grounded (neutral) or grounding (equipment-ground) conductors. Listed application types include panelboards, load centers, meter sockets, and enclosures.

Circuit Configuration and Wire Range

This bar has 6 circuits and 8 total holes. The stated conductor range is #14-2/0 AWG, and the bar is rated 600V.

Aluminum Construction and Conductor Compatibility

The bar body is made of 6060-T6 tin-plated aluminum and is dual rated for copper or aluminum conductors.

Length and Mounting Hole Positions

The Morris 91148 is 4.75 inches long. Its mounting hole positions are identified as 1 and 8.

Before You Order

Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 91148 Aluminum Neutral/Ground Bar, 6-Circuit, #14-2/0 AWG. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number91148
Product TypeAluminum neutral/ground bar
Material6060-T6 tin-plated aluminum
Circuits6
Total Holes8
Wire Range#14-2/0 AWG
Conductor CompatibilityCopper or aluminum; dual rated
Rated Voltage600V
Length4.75 in.
Mounting Hole Positions1 and 8
SKU91148

Comments

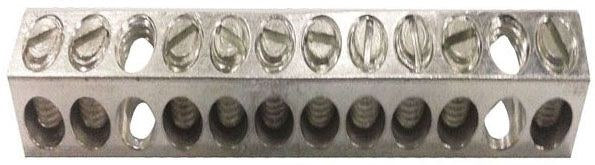

Morris 91148 Aluminum Neutral / Ground Bar
