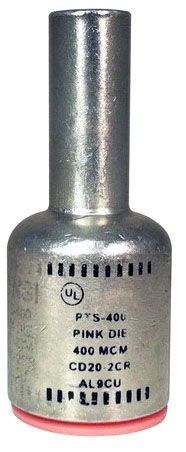

Morris 90981 Straight Solid Pin Terminal, 400 MCM Wire / 300 MCM Pin

Product Overview

The Morris 90981 is a straight solid pin terminal connector that adapts a 400 MCM aluminum or copper conductor to a 300 MCM solid equipment pin.

Tin‑plated aluminum barrel is prefilled with oxide inhibitor and the connector ships with an EPDM insulating cover; rated for 600 V.

Key Features

• Straight solid pin design for terminating 400 MCM conductor to a 300 MCM pin
• All‑aluminum construction with tin plating
• Barrel prefilled with oxide inhibitor
• Die index and crimp marks on the barrel for crimp placement
• Supplied with EPDM insulating cover
• Voltage rating: 600 V

Function and purpose

The Morris 90981 provides a straight solid pin termination by accepting a 400 MCM conductor and presenting a 300 MCM solid pin for equipment terminations. It is intended for landing conductors onto compatible equipment pins.

Materials and finish

The terminal body is aluminum with a tin plating. The tin plating is applied to the aluminum barrel.

• Body: Aluminum
• Finish: Tin plating

Installation and crimping

Strip the conductor to the appropriate length, insert the conductor fully into the barrel, and crimp at the marked die/crimp location. After crimping, slide the supplied EPDM insulating cover over the completed connection.

• Barrel includes die index and crimp marks to indicate crimp location
• Barrel is prefilled with oxide inhibitor

Electrical rating

The product is rated to 600 V.

• Voltage rating: 600 V

Wire and pin compatibility

Specified to accept a 400 MCM conductor and provide a 300 MCM solid pin termination. Verify the equipment pin dimensions and conductor selection before use.

• Accepts: 400 MCM conductor
• Provides: 300 MCM solid pin termination
• Conductor types: Aluminum or Copper (with tin‑plated barrel)

Before You Order

Verify that your equipment accepts a 300 MCM solid pin and that a 400 MCM conductor is the correct field conductor size.

• Confirm equipment pin size (300 MCM) and conductor size (400 MCM)
• Use the proper crimp tool and die for the marked crimp location
