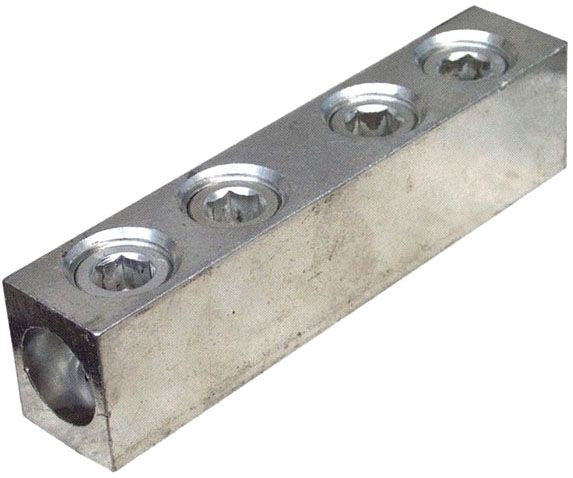

Morris 90624 Aluminum Mechanical Splice, 750-250 MCM
Description
Product Overview
The Morris 90624 is an in-line mechanical splice for joining two 750-250 MCM conductors. It is dual rated for copper and aluminum conductors.
This aluminum splice is electro-tin plated and uses Allen-head set screws. Its stated ratings are 600V and 90°C.
Key Features
- In-line splice for two 750-250 MCM conductors
- Dual rated for copper and aluminum conductors
- Electro-tin plated aluminum construction
- Allen-head set screws
- Rated 600V and 90°C
In-line connection for large conductors
The Morris 90624 joins two conductors end-to-end in an in-line, run-to-run configuration. Its listed wire range is 750-250 MCM, and the product is described for in-line splicing in feeder, service, and grounding runs.
Conductor compatibility and electrical ratings
The 90624 is dual rated for copper or aluminum conductors. It is rated 600V at 90°C and has an aluminum body with electro-tin plating.
Set-screw connection
The splice uses Allen-head set screws. The stated installation method is to insert each conductor fully into the barrel and tighten the set screws to the rated torque for the wire size.
Before You Order
Confirm that the Morris 90624 model and its 750-250 MCM conductor range match your project requirements.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Morris 90624 Aluminum Mechanical Splice, 750-250 MCM. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Morris |
|---|---|
| Catalog Number | 90624 |
| Product Type | Aluminum mechanical splice |
| Connection configuration | In-line splice |
| Wire Range | 750-250 MCM |
| Conductor Compatibility | Copper or aluminum; dual rated |
| Material and plating | Aluminum, electro-tin plated |
| Set Screw | Allen-head |
| Rated Voltage | 600V |
| Temperature Rating | 90°C |
