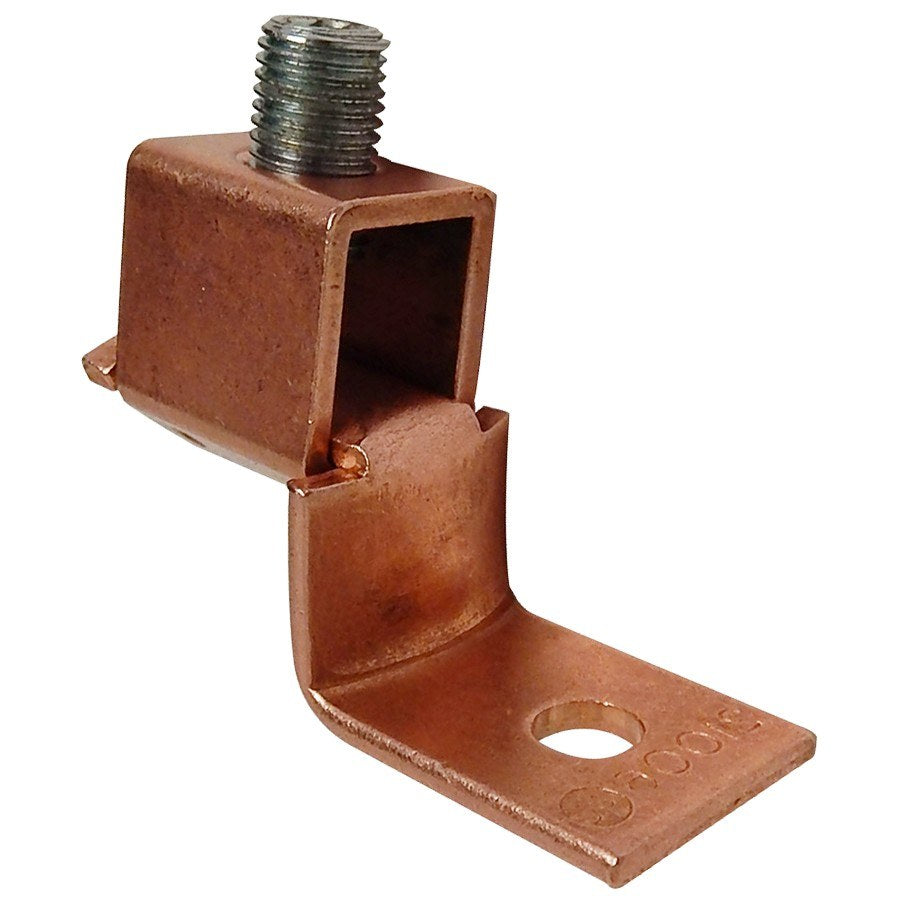

Morris 90526 Copper Offset Lug, 400A, 500 MCM - 1/0 AWG

Product Overview

Morris 90526 is a copper mechanical offset lug for terminating 500 MCM down to 1/0 AWG copper conductors, listed with a 400A ampacity and 600V rating.

Features an arched pressure bar and V-bottom collar to seat the conductor, steel-plated screws to resist corrosion, and an offset tang to provide clearance from adjacent terminals or busbars.

Key Features

• Ampacity: 400A
• Wire range: 500 MCM to 1/0 AWG (copper conductors)
• Material: Copper body; steel-plated screws/bolts
• Contact design: Arched pressure bar with V-bottom collar
• Voltage rating: 600V
• Mounting hole diameter: 0.41"
• Installation tools: screwdriver, wrench, or pliers

What this lug does

The Morris 90526 provides a mechanical termination for copper conductors within the specified wire range. Its offset tang positions the termination away from the mounting plane to clear adjacent hardware when needed.

• Made of copper for the lug body and intended for copper conductors.
• Offset design provides clearance from nearby terminals or busbars.

Typical applications

Appropriate where a copper termination with offset clearance is required, such as in electrical panels, switchgear, distribution blocks, or grounding/neutral termination points where space or alignment necessitates an offset lug.

• Panel and switchgear terminations
• Distribution and grounding connections
• Situations needing offset clearance from adjacent lugs or busbars

Installation and conductor termination

Insert the copper conductor under the arched pressure bar so it seats into the V-bottom collar, then tighten the steel-plated screw or bolt using a screwdriver, wrench, or pliers to form the mechanical connection.

• Accepts tightening with screwdriver, wrench, or pliers.
• Use copper conductors within the specified 500 MCM to 1/0 AWG range.
• Follow applicable electrical codes and project-specific torque or installation procedures.

Key specifications

Verified product specifications for selection and installation are listed below.

• Brand: Morris
• Catalog no.: 90526
• Type: Copper mechanical offset lug
• Ampacity: 400A
• Wire range: 500 MCM – 1/0 AWG (copper conductors)
• Mounting hole diameter: 0.41"
• Material: Copper body; steel-plated screws/bolts
• Voltage rating: 600V
• SKU: '90526

Before You Order

Verify the conductor is copper and that its gauge falls within 500 MCM to 1/0 AWG.

• Confirm the required mounting hole size (0.41") and that an offset lug fits the intended clearance needs.
• Confirm model number and quantity before ordering.
