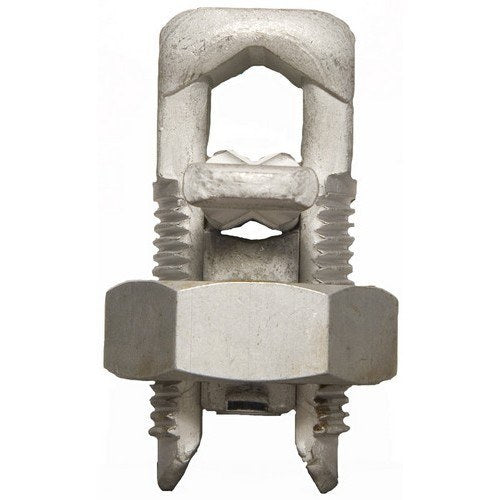

Morris 90422 Dual Rated Split Bolt with Spacer, 4/0 AWG
Morris 90422 Dual Rated Split Bolt with Spacer, 4/0 AWG
Regular price
$42.34
Regular price
Sale price
$42.34
SKU:90422
Quantity
Couldn't load pickup availability
Morris's 90422 is a dual-rated aluminum-alloy split bolt with spacer for aluminum and copper stranded conductor connections across a 4/0-6 AWG range. It is manufactured from aluminum alloy, electro-tin plated, and UL486B AL9CU listed; it is rated 600V at 90°C and is not direct-burial rated.
Key Features
- UL486B AL9CU Listed for Aluminum, Aluminum-to-Copper, and Copper-to-Copper Stranded Wires
- Manufactured from Aluminum Alloy
- Electro-Tin Plated
- Spacer Separates Dissimilar Conductors and Enhances Surface Contact
- Free-Turning Threads with Easy-Grip Wrench Flats
- Anti-Oxidant Recommended for All Aluminum Terminations
- Rated 600V, 90°C
- Not Direct Burial Rated
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 90422 |
| Type | Dual Rated Split Bolt with Spacer |
| Main Conductor | 4/0 AWG |
| Conductor Range | 4/0-6 AWG |
| Material | Aluminum Alloy, Electro-Tin Plated |
| Conductor Compatibility | Aluminum / Copper (Dual Rated) |
| Spacer | Yes |
| Installation Torque | 500 in-lb |
| Voltage | 600V |
| Temperature Rating | 90°C |
| Listing | UL486B AL9CU |
| Direct Burial | Not Rated |
Applications
Used for aluminum and copper stranded splice and tap connections within the 4/0-6 AWG range for aboveground service-entrance and distribution work. This connector is not rated for direct burial.
Installation
Apply anti-oxidant to aluminum conductors, insert the run and tap between the bolt and strap with the spacer seated between dissimilar conductors, then tighten to 500 in-lb.
