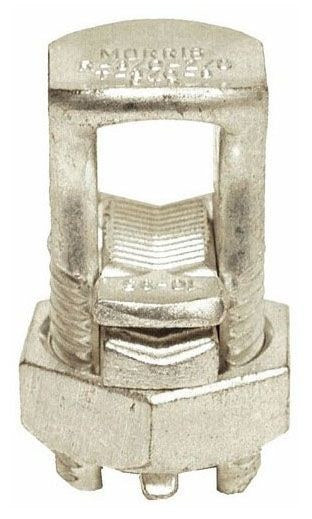

Morris 90416 Dual Rated Split Bolt with Spacer, 2 AWG

Product Overview

The Morris 90416 is a dual-rated split bolt with spacer for stranded aluminum and copper conductor connections. Its listed conductor range is 2–14 AWG, and the product is rated 600V and 75°C.

Made from electro-tin-plated copper alloy, this split bolt is UL486B AL9CU listed and UL467 listed for direct burial. The spacer separates dissimilar conductors and enhances surface contact.

Key Features

• For aluminum-to-aluminum, aluminum-to-copper, and copper-to-copper stranded conductor connections
• 2–14 AWG conductor range; 600V and 75°C ratings
• Electro-tin-plated copper alloy construction with spacer
• UL486B AL9CU and UL467 listed for direct burial
• 275 in-lb installation torque; anti-oxidant recommended for aluminum terminations

Conductor Compatibility and Range

The Morris 90416 is listed for stranded aluminum-to-aluminum, aluminum-to-copper, and copper-to-copper connections. Its conductor range is 2–14 AWG; 2 AWG is identified as the main conductor size.

Copper Alloy Construction and Spacer

This split bolt is made from copper alloy with an electro-tin-plated finish. Its spacer separates dissimilar conductors and enhances surface contact.

• Free-turning threads
• Easy-grip wrench flats
• Anti-oxidant is recommended for aluminum terminations

Electrical Ratings and Direct-Burial Listing

The 90416 is rated 600V and 75°C. It is UL486B AL9CU listed and UL467 listed for direct burial, including soil and concrete.

• Installation torque: 275 in-lb

Before You Order

Confirm the model number and quantity required before ordering.
