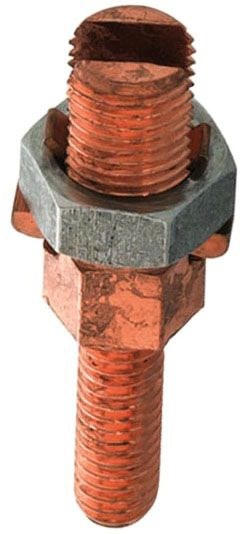

Morris 90383 Service Post Connector, 2 AWG, 2 Wire

(No Ratings)
SKU: 90383
Price: $14.58
Free shipping on orders over $1,500

Description

Product Overview

The Morris 90383 is a two-wire service post connector designed to ground two conductors (each position accepts #12 through #2 AWG) to steel structures, transformers, fence posts, or steel plate.

Constructed of high-strength electrolytic copper and UL467 listed for grounding/bonding, the 90383 supports direct burial in earth or concrete and features a lay-in design for continuous-loop grounding.

Key Features

  • Accepts (2) #12 – (2) #2 AWG conductors per connector
  • Main conductor rating: 2 AWG
  • High-strength electrolytic copper construction
  • Lay-in feature for continuous-loop grounding
  • UL467 listed for grounding/bonding and approved for direct burial in earth or concrete

What this connector does

The Morris 90383 is a purpose-built service post connector that provides a mechanical and electrical connection between copper grounding conductors and steel structures. It secures two conductors per connector and creates a bonded path for grounding or earthing systems.

Typical applications

Use the 90383 to bond grounding conductors to steel posts, transformers, fence posts, steel plates, or other steel structures where a robust grounding connection is required.

  • Grounding to steel structures and posts
  • Bonding at transformer or equipment mounting points
  • Continuous-loop grounding using lay-in conductor installation

Installation overview

Conductors are laid into the connector body and clamped by tightening the clamping nut against the steel structure or stud with a wrench. The connector’s lay-in feature permits adding conductors without looping through the body.

  • Lay conductors into the connector body
  • Tighten clamping nut against the steel surface or stud with an appropriate wrench
  • Lay-in design enables continuous-loop grounding without feeding conductors through the connector

Materials and safety listing

The 90383 is made from high-strength electrolytic copper and is UL467 listed for grounding and bonding. It is rated for direct burial in earth and for embedding in concrete, supporting long-term corrosion-resistant grounding installations.

  • Material: High-strength electrolytic copper
  • Listing: UL467 for grounding/bonding
  • Direct burial rating: Approved for earth and concrete

Electrical and wire compatibility

The connector is sized to accept a range of conductor sizes and is identified with a main conductor rating of 2 AWG. It is intended to connect two conductors per connector with the following supported range.

  • Main conductor: 2 AWG
  • Wire range: (2) #12 – (2) #2 AWG (two conductors)

Before You Order

Confirm the model number and the quantity required before ordering. Ensure the connector’s wire range and main conductor rating match your grounding conductors and application.

  • Verify conductor sizes (acceptable: #12 through #2 AWG) and that you require a two-conductor service post connector.
  • Confirm compatibility with project grounding requirements and that UL467 listing and direct burial suitability meet local code or inspector specifications.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 90383 Service Post Connector, 2 AWG, 2 Wire. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU90383; '90383
Product TypeService Post Connector (2 Wire)
Main Conductor2 AWG
Wire Range(2) #12 – (2) #2 AWG
Wire2
MaterialHigh-strength electrolytic copper
CertificationsUL467
Direct BurialYes — Earth & Concrete
