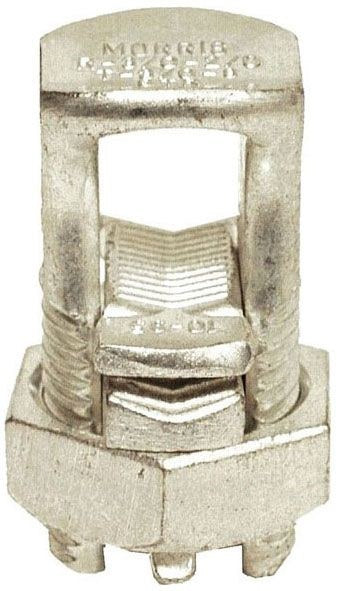

Morris 90364 Copper Split Bolt with Spacer, 350 MCM
Description
Product Overview
The Morris 90364 is a copper split bolt with spacer for splicing, tapping, grounding, and bonding copper and copper-weld stranded conductors. Its stated conductor range is 350 MCM to 1/0 AWG.
This 600V connector is electro-tin plated and UL467 listed for direct burial and grounding/bonding. It is identified for direct burial in soil and concrete.
Key Features
- Copper construction with electro-tin plating
- Spacer separates dissimilar conductors and enhances surface contact
- For copper and copper-weld stranded conductors
- UL467 listed for direct burial and grounding/bonding
- Installation torque: 650 in-lb
What the Morris 90364 Split Bolt Is Used For
The Morris 90364 makes splice and tap connections, as well as grounding and bonding connections, within its stated conductor range. It is intended for copper-to-copper connections and is listed for copper and copper-weld stranded wires only.
Conductor Compatibility and Range
The 90364 accommodates copper and copper-weld stranded conductors in a range from 350 MCM to 1/0 AWG. Confirm that the conductor material and sizes in the planned connection fall within this range.
Spacer and Installation Details
The spacer separates dissimilar conductors and enhances surface contact. For installation, place the run and tap conductors between the bolt and strap, seat the spacer between dissimilar conductors, and tighten the nut to 650 in-lb with a wrench.
Direct-Burial Use and Listing
The Morris 90364 is UL467 listed for direct burial and grounding/bonding. Its stated direct-burial applications include soil and concrete.
Before You Order
Confirm the conductor material and sizes are compatible with the 90364's stated range.
- Confirm the model number and quantity required before ordering.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Morris 90364 Copper Split Bolt with Spacer, 350 MCM. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Morris |
|---|---|
| Catalog Number | 90364 |
| Connector type | Copper split bolt with spacer |
| Main Conductor | 350 MCM |
| Wire Range | 350 MCM to 1/0 AWG |
| Conductor Compatibility | Copper and copper-weld stranded |
| Material / Finish | Copper, electro-tin plated |
| Spacer | Yes |
| Installation Torque | 650 in-lb |
| Rated Voltage | 600V |
| Certifications | UL467 |
| Direct Burial | Yes; soil and concrete |
