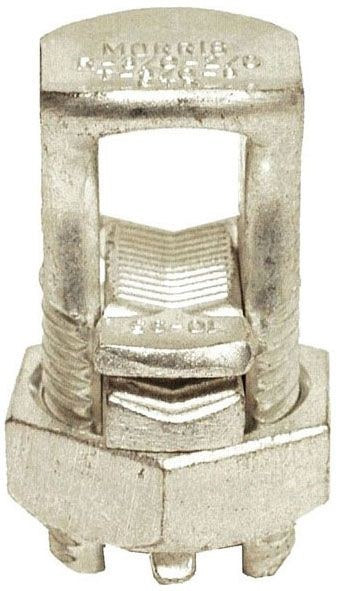

Morris 90362 Copper Split Bolt with Spacer, 250 MCM

Product Overview

The Morris 90362 is a machined copper split bolt with spacer for splicing, tapping, grounding and bonding of stranded copper and copper-weld conductors within a 250 MCM to 8 AWG range.

Electro-tin plated and listed to UL467, this connector is rated 600 V, suitable for direct burial in soil and concrete per its listing, and has a recommended installation torque of 500 in-lb.

Key Features

• Accepts stranded copper and copper-weld conductors, range: 250 MCM – 8 AWG
• Machined copper construction with electro-tin plating
• Includes spacer to separate dissimilar conductors and enhance surface contact
• UL467 listed for grounding/bonding and direct burial (soil and concrete)
• Rated 600 V; recommended installation torque 500 in-lb
• Free-turning threads and wrench flats to aid tightening

Intended uses

The 90362 split bolt is intended for joining or tapping stranded copper and copper-weld conductors within its specified size range, and for grounding and bonding connections where such a connector is appropriate.

• Typical uses: splicing, tapping, grounding, and bonding of stranded copper/copper-weld conductors

Conductor compatibility and sizes

This SKU accepts stranded copper and copper-weld conductors from 250 MCM down to 8 AWG. The included spacer can be used to separate dissimilar conductors as needed.

• Conductor range: 250 MCM – 8 AWG
• Compatible conductor materials: stranded copper and copper-weld

Installation and torque guidance

Position the run and tap conductors between the bolt and strap, seat the spacer between dissimilar conductors if used, and tighten the nut to the specified 500 in-lb torque using appropriate tools.

• Recommended installation torque: 500 in-lb
• Features free-turning threads and wrench flats to assist tightening

Construction, finish, ratings and listings

The connector is machined from copper and electro-tin plated. It is rated 600 V and is listed to UL467 for grounding/bonding and direct burial in soil and concrete.

• Material/finish: machined copper, electro-tin plated
• Voltage rating: 600 V
• Listing: UL467
• Direct burial: listed for soil and concrete

Before You Order

Confirm the catalog number and that your conductors are stranded copper or copper-weld within the 250 MCM–8 AWG range.

• Verify conductor sizes and whether a spacer is needed for dissimilar conductors.
