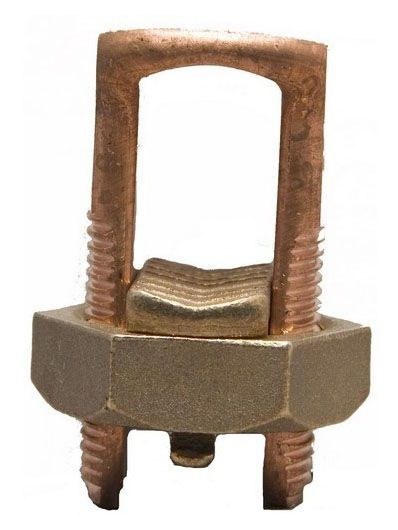

Morris 90334 Copper Split Bolt, 750 MCM

Product Overview

The Morris 90334 is a copper split bolt for splicing, tapping, grounding, and bonding stranded copper and copper-weld conductors. Its stated conductor range is 750 MCM to 8 AWG.

The connector is machined from copper and electro-tin plated. It is rated 600 volts and UL467 listed for direct burial and grounding or bonding.

Key Features

• For stranded copper and copper-weld conductors only
• 750 MCM to 8 AWG conductor range
• Copper construction with electro-tin plating
• UL467 listed for direct burial and grounding or bonding
• 600-volt rating and 1000 in-lb installation torque

Conductor Compatibility and Range

The Morris 90334 is specified for stranded copper and copper-weld wires only, with a conductor range of 750 MCM to 8 AWG. Use it for connections within that stated range.

Copper Construction and Electrical Rating

This split bolt is machined from copper and electro-tin plated. Its stated voltage rating is 600 volts; the catalog description also identifies it as highly resistant to cracking and corrosion.

Splicing, Tapping, and Direct-Burial Use

The connector is intended for copper-to-copper splicing and tapping, as well as grounding and bonding connections. It is UL467 listed for direct burial, including in soil and concrete.

Installation and Tightening Torque

Place the run and tap conductors between the bolt and strap, then tighten the nut with a wrench to the specified 1000 in-lb torque.

Before You Order

Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 90334 Copper Split Bolt, 750 MCM. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
