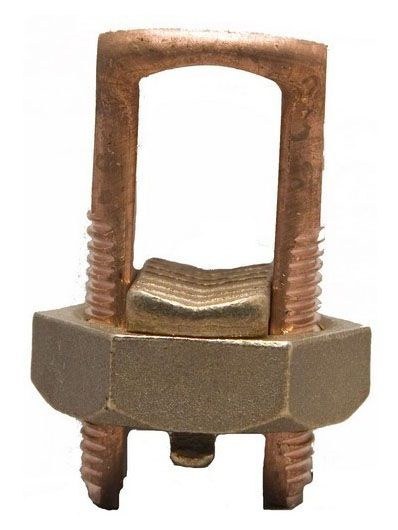

Morris 90328 Copper Split Bolt, 250 MCM

Product Overview

The Morris 90328 is a copper split bolt for splicing and tapping copper and copper-weld stranded conductors. Its listed conductor range is 250 MCM to 8 AWG, with a main conductor range of 4/0 AWG to 250 MCM.

Made from electro-tin-plated copper, this connector is rated 600 V and UL 467 listed for grounding and bonding, including direct burial in soil and concrete.

Key Features

• For copper and copper-weld stranded conductors
• Conductor range: 250 MCM to 8 AWG; main conductor range: 4/0 AWG to 250 MCM
• Copper construction with electro-tin plating
• 500 in-lb installation torque
• 600 V rating and UL 467 listing
• Suitable for direct burial in soil and concrete

Splicing and Tapping Copper Conductors

The Morris 90328 makes splice and tap connections with copper or copper-weld stranded conductors. It is also identified for grounding and bonding connections.

Conductor Range and Configuration

The listed overall conductor range is 250 MCM to 8 AWG. The main conductor range is 4/0 AWG to 250 MCM.

Material, Voltage Rating and Listing

The 90328 is machined from copper and electro-tin plated. It is rated 600 V and UL 467 listed for direct burial and grounding/bonding.

Installation Torque and Direct Burial

For installation, place the run and tap conductors between the bolt and strap, then tighten the nut to 500 in-lb with a wrench. The connector is identified for direct burial in soil and concrete.

Before You Order

Confirm that the conductor material and sizes fall within the listed ranges and that the 90328 matches the connection required.
