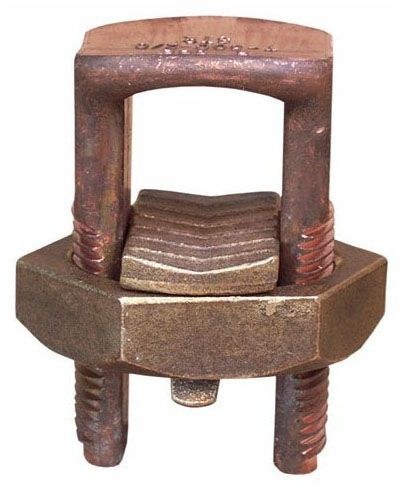

Morris 90324 Copper Split Bolt, 2/0 AWG

Product Overview

The Morris 90324 is a copper split bolt for splicing and tapping copper and copper-weld stranded conductors. Its listed main conductor size is 2/0 AWG, and its stated conductor range is 2/0–14 AWG.

The connector is made from copper with an electro-tin-plated finish. It is rated 600V and UL467 listed for direct burial and grounding and bonding.

Key Features

• For copper and copper-weld stranded conductors within the stated 2/0–14 AWG range
• Copper construction with electro-tin plating
• UL467 listed for direct burial and grounding and bonding
• 600V rating; installation torque is 385 in-lb

Splicing and Tapping Copper Conductors

The Morris 90324 is intended for copper-to-copper splicing and tapping, including grounding and bonding connections. It is listed for copper and copper-weld stranded wires only.

The catalog identifies 2/0 AWG as the main conductor size and gives a conductor range of 2/0–14 AWG.

Copper Construction and UL467 Listing

This split bolt is machined from copper and electro-tin plated. It is rated 600V and UL467 listed for direct burial and grounding and bonding.

• Material: copper
• Finish: electro-tin plated
• Voltage rating: 600V
• Listing: UL467

Installation Torque

Place the run and tap conductors between the bolt and strap, then tighten the nut to 385 in-lb with a wrench.

Direct-Burial Use

The 90324 is identified for direct burial in soil and concrete. Its stated direct-burial use is part of its UL467 listing.

Before You Order

Confirm the model number and quantity required before ordering.
