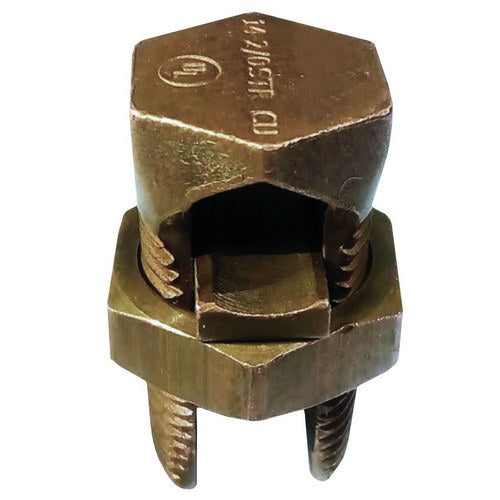

Morris 90312 Copper Hex Head Split Bolt, 750 MCM

Product Overview

The Morris 90312 is a copper hex head split bolt for splicing or tapping copper conductors. Its specified conductor range is 750 MCM to 4/0 AWG.

This reusable connector is rated 600V at 90°C and has an installation torque of 1,000 in-lb.

Key Features

• Copper construction; rated for copper conductors only
• For splicing and tapping conductors within the 750 MCM to 4/0 AWG range
• Reusable design with a hex head for wrench tightening
• 600V and 90°C ratings

Conductor Compatibility and Range

The Morris 90312 is rated for copper conductors only, with a conductor range of 750 MCM to 4/0 AWG. Confirm the conductor material and sizes are within this range before selecting the connector.

Splicing and Tapping Applications

This split bolt is used to splice or tap copper building wire, service-entrance, and feeder conductors. The described applications include copper-to-copper connections in panels, gutters, and junction boxes for aboveground use.

Installation and Torque

Place the run and tap conductors between the bolt and strap, then tighten the nut with a wrench to the specified torque.

• Installation torque: 1,000 in-lb

Voltage and Temperature Ratings

The Morris 90312 is rated for 600V and a temperature of 90°C (194°F).

Before You Order

Confirm the conductor material and sizes are compatible with the 90312's copper-only rating and 750 MCM to 4/0 AWG range.
