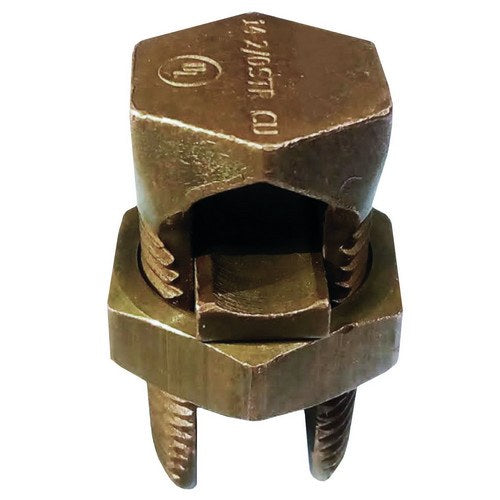

Morris 90310 Copper Hex Head Split Bolt, 350 MCM

(No Ratings)
SKU: 90310
Price: $46.19
Free shipping on orders over $1,500

Description

Product Overview

Copper hex head split bolt (Morris 90310) sized for a main conductor of 350 MCM and compatible with copper conductors in the 350 MCM–1/0 AWG range.

Machined from solid copper, rated 600V and 90°C (194°F), reusable, and tightened to 650 in‑lb with a wrench for copper‑to‑copper splices and taps.

Key Features

  • Solid copper construction — for copper conductors only
  • Conductor range: 350 MCM to 1/0 AWG
  • Voltage rating: 600V; temperature rating: 90°C (194°F)
  • Installation torque: 650 in‑lb (wrench‑torqued)
  • Reusable connector suitable for splicing and tapping

What this connector is used for

The Morris 90310 split bolt is designed to splice or tap copper conductors in aboveground electrical installations. Typical applications include building wire, service‑entrance, and feeder conductors inside panels, gutters, and junction boxes where a copper‑to‑copper mechanical connection is required.

  • Splicing and tapping copper conductors (main and tap connections)
  • Suitable for use in panels, junction boxes, gutters, and similar accessible enclosures

Conductor compatibility and range

This connector is manufactured for use with copper conductors only and accommodates a main conductor size of 350 MCM with a compatibility range from 350 MCM down to 1/0 AWG for the mate(s).

  • Material compatibility: copper conductors only
  • Conductor size range: 350 MCM – 1/0 AWG

Installation and torque requirements

Install the run and tap conductors between the bolt and strap and tighten the nut using a wrench to the specified torque. Proper torque ensures mechanical integrity and reliable electrical contact.

  • Recommended installation torque: 650 in‑lb
  • Connector is reusable; retorque to specified value when reinstalling

Electrical and thermal ratings

The 90310 split bolt carries the following electrical and thermal ratings, which should be considered when specifying the connector for an application.

  • Voltage rating: 600V
  • Temperature rating: 90°C (194°F)

Before You Order

Confirm the model number and conductor sizes to ensure compatibility with your copper conductors before ordering.

  • Intended for copper conductors only — do not use with aluminum or other materials.
  • Verify required installation torque (650 in‑lb) and available tooling.
  • Check that the connector’s voltage and temperature ratings meet your application requirements.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 90310 Copper Hex Head Split Bolt, 350 MCM. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU90310; '90310
Product TypeCopper Hex Head Split Bolt
Main Conductor350 MCM
Conductor Range350 MCM – 1/0 AWG
MaterialCopper
Wire RangeCopper only
Installation Torque650 in‑lb
Rated Voltage600V
Temperature Rating90°C (194°F)
ReusableYes
Price$46.19
