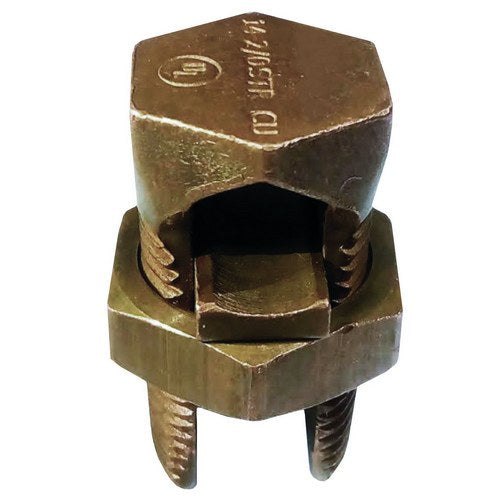

Morris 90309 Copper Hex Head Split Bolt, 250 MCM

Product Overview

The Morris 90309 is a reusable copper hex head split bolt for splicing or tapping copper conductors. Its stated conductor range is 250 MCM to 8 AWG, with a main conductor range of 4/0 AWG to 250 MCM.

The connector is rated 600V and 90°C. Installation uses a wrench to tighten the nut to 650 in-lb.

Key Features

• Copper construction for copper conductors only
• Conductor range: 250 MCM to 8 AWG; main conductor range: 4/0 AWG to 250 MCM
• Reusable connector rated 600V and 90°C
• Installation torque: 650 in-lb

Splicing and Tapping Copper Conductors

The Morris 90309 split bolt is used to splice or tap copper building wire, service-entrance, and feeder conductors. Stated applications include aboveground copper-to-copper connections in panels, gutters, and junction boxes.

Conductor Range and Compatibility

The 90309 is rated for copper conductors only. Its overall conductor range is 250 MCM to 8 AWG, and its specified main conductor range is 4/0 AWG to 250 MCM.

Installation and Torque

Position the run and tap conductors between the bolt and strap, then tighten the nut with a wrench to 650 in-lb. The connector is identified as reusable.

Voltage and Temperature Ratings

The Morris 90309 is rated 600V and 90°C (194°F).

Before You Order

Confirm that the conductors are copper and fall within the stated range for the Morris 90309. Check the main conductor range separately when selecting the run conductor.
