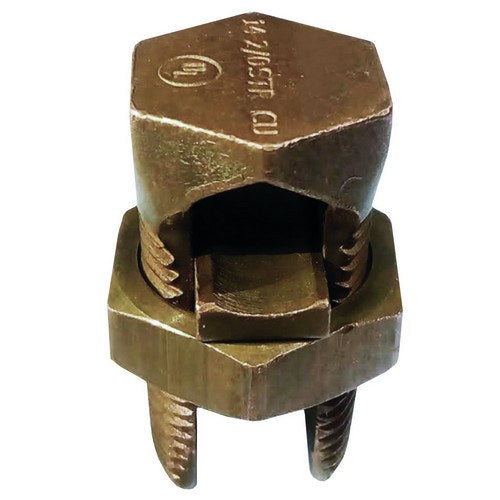

Morris 90308 Copper Hex Head Split Bolt, 3/0 AWG

Morris 90308 Copper Hex Head Split Bolt, 3/0 AWG

$18.29
$18.29
Sale Sold out

90308

Morris's 90308 is a copper hex head split bolt that splices or taps copper conductors across a 3/0-8 AWG range. Machined from solid copper and rated 600V at 90°C, it is reusable and torqued with a wrench.

Key Features

  • Manufactured from Copper
  • Rated for Copper Conductors Only
  • Connectors are Re-Usable
  • Rated 600V, 194°F (90°C)

Specifications

Brand Morris
Catalog No. 90308
Type Copper Hex Head Split Bolt
Main Conductor 3/0 AWG
Conductor Range 3/0-8 AWG
Material Copper
Conductor Compatibility Copper Only
Installation Torque 500 in-lb
Voltage 600V
Temperature Rating 90°C
Reusable Yes

Applications

Used for splicing and tapping copper building wire, service-entrance, and feeder conductors in panels, gutters, and junction boxes for aboveground copper-to-copper connections within the 3/0-8 AWG range.

Installation

Insert the run and tap conductors between the bolt and strap, then tighten the nut to 500 in-lb with a wrench.
