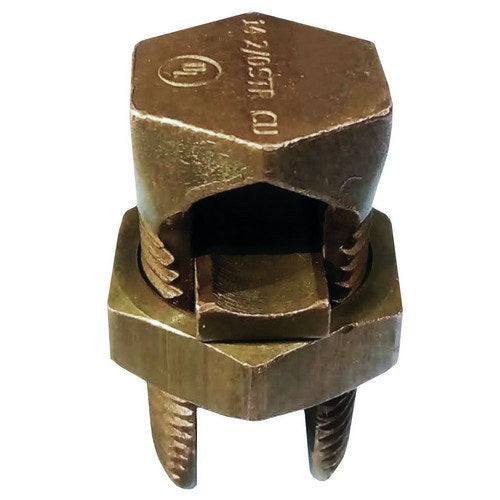

Morris 90307 Copper Hex Head Split Bolt, 2/0 AWG

Product Overview

The Morris 90307 is a copper hex head split bolt for splicing or tapping copper conductors. Its stated conductor range is 2/0–14 AWG.

This reusable connector is rated 600V and 90°C. Installation requires tightening the nut to 385 in-lb with a wrench.

Key Features

• Copper construction for copper conductors only
• Conductor range: 2/0–14 AWG
• Rated 600V and 90°C
• Reusable connector with a 385 in-lb installation torque

Copper Conductor Splicing and Tapping

The Morris 90307 is intended for splicing or tapping copper building wire, service-entrance, and feeder conductors. The stated conductor range is 2/0–14 AWG, and the connector is rated for copper conductors only.

Listed application locations include panels, gutters, and junction boxes for aboveground copper-to-copper connections.

Voltage and Temperature Ratings

The 90307 is rated 600V at 90°C (194°F). It is made of copper and is described as reusable.

Installation and Torque

Place the run and tap conductors between the bolt and strap, then tighten the nut with a wrench to 385 in-lb.

Before You Order

Confirm that the conductors are copper and fall within the stated 2/0–14 AWG range.
