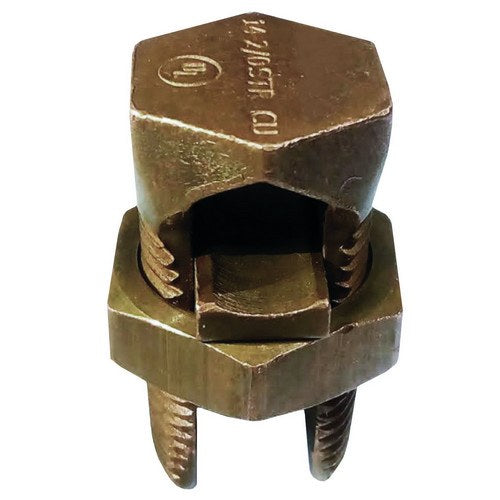

Morris 90306 Copper Hex Head Split Bolt, 1/0 AWG

Product Overview

The Morris 90306 is a copper hex head split bolt for splicing or tapping copper conductors. Its stated conductor range is 1/0–14 AWG, with a 1/0 AWG main conductor designation.

This reusable connector is rated 600V and 90°C. Installation uses a wrench, with a specified torque of 385 in-lb.

Key Features

• Copper construction; rated for copper conductors only
• For splicing or tapping conductors within the stated 1/0–14 AWG range
• Reusable connector with hex head
• 600V rating and 90°C temperature rating
• Installation torque: 385 in-lb

Splicing and Tapping Copper Conductors

The Morris 90306 is designed to splice or tap copper conductors within the stated 1/0–14 AWG range. The connector is rated for copper conductors only.

Voltage and Temperature Ratings

The 90306 split bolt has a 600V rating and a temperature rating of 90°C (194°F).

Installation and Torque

Place the run and tap conductors between the bolt and strap, then tighten the nut with a wrench to 385 in-lb. The connector is reusable.

Typical Applications

This split bolt is described for aboveground copper-to-copper connections involving building wire, service-entrance, and feeder conductors. Example locations include panels, gutters, and junction boxes.

Before You Order

Confirm that the 1/0–14 AWG range and copper-only compatibility suit the conductors in your application.
