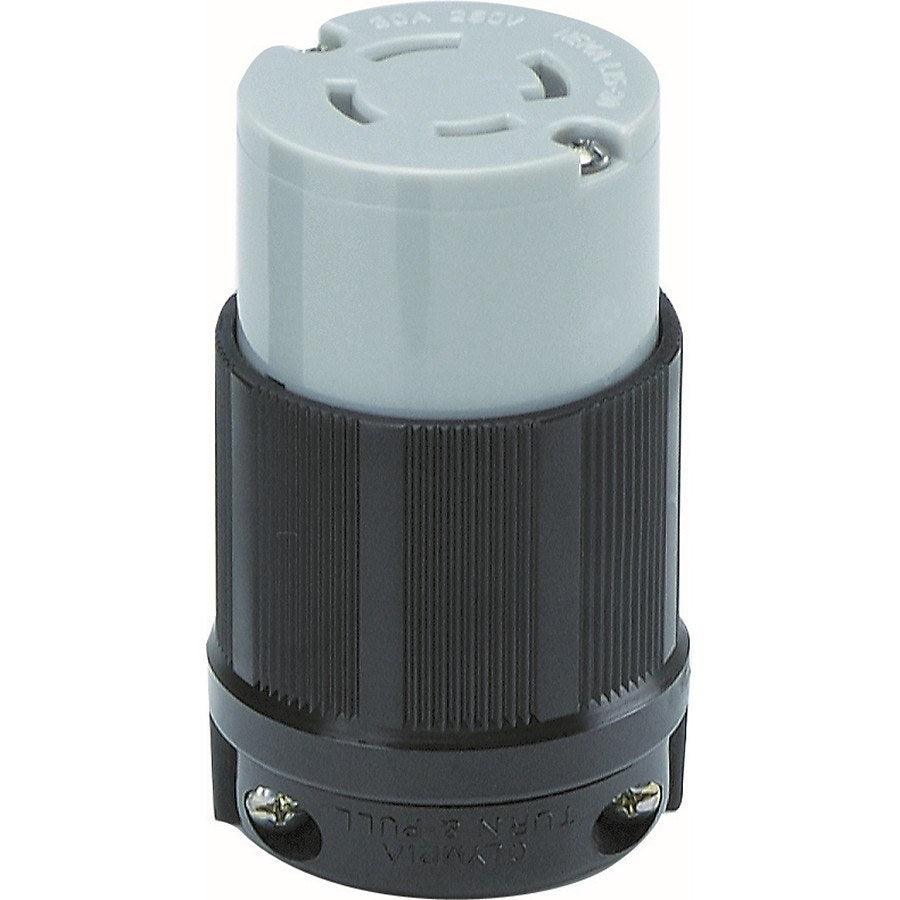

Morris 89761 L15-30C Locking Connector, 30A 250V

(No Ratings)
SKU: 89761
Price: $44.42
Free shipping on orders over $1,500

Description

Product Overview

The Morris 89761 is a female NEMA L15-30C locking connector rated for 30A and 250V. Its configuration is 3-pole, 4-wire.

Designed for cord and equipment connections in commercial and industrial settings, the connector has brass contacts, a grooved housing, and a cord strain relief with a rubber grommet.

Key Features

  • Female NEMA L15-30C configuration, rated 30A and 250V
  • 3-pole, 4-wire design
  • Nylon and polycarbonate housing described as resistant to impact, abrasion, sunlight, and chemicals
  • Solid one-piece brass contacts set in deep pockets
  • Grooved housing for grip and a clear terminal chamber for visual inspection
  • Heavy-duty brass combination-head terminal screws, cord strain relief, rubber grommet, and grounding screw

NEMA L15-30C Configuration and Rating

The Morris 89761 is a female L15-30C locking connector with a 30A, 250V rating. It uses a 3-pole, 4-wire configuration.

Housing, Contacts, and Connection Features

The connector combines a nylon and polycarbonate housing with solid one-piece brass contacts. The housing is described as resistant to impact, abrasion, sunlight, and chemicals.

  • Deep pockets house the power contacts.
  • A grooved housing provides a gripping surface, and the clear terminal chamber allows visual inspection of terminals.
  • Heavy-duty brass combination-head terminal screws, cord strain relief, a rubber grommet, and a grounding screw are included.

Cord and Equipment Applications

This connector is intended for 30A, 250V NEMA L15-30C locking power connections on cords and equipment in commercial and industrial settings.

Before You Order

Confirm that the L15-30C configuration, 30A rating, 250V rating, and female connector type match the intended connection.

  • Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 89761 L15-30C Locking Connector, 30A 250V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number89761
Product TypeLocking connector
NEMA ConfigurationL15-30C
ConfigurationFemale
Ampere Rating30A
Voltage250V
Poles and wires3-pole, 4-wire
Housing MaterialNylon/polycarbonate
Contact MaterialBrass
SKU89761
