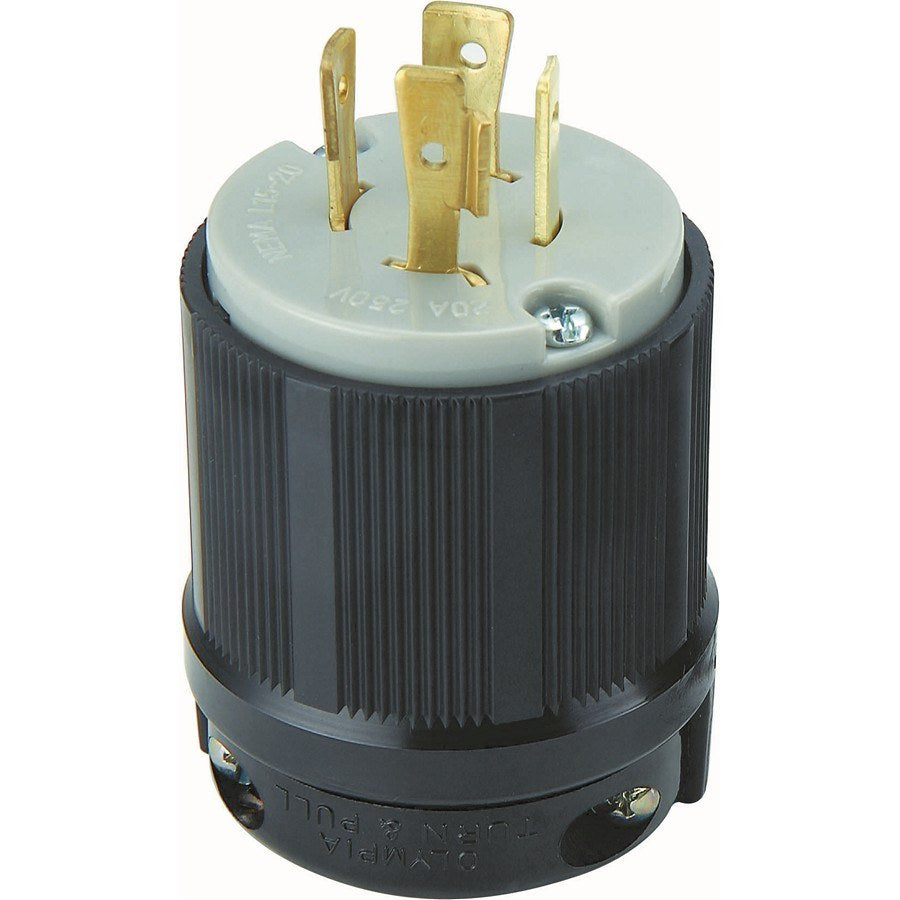

Morris 89755 L15-20P Locking Plug, 20A 250V

(No Ratings)
SKU: 89755
Price: $23.96
Free shipping on orders over $1,500

Description

Product Overview

The Morris 89755 is a NEMA L15-20P locking plug (male) rated 20A at 250V for 3-pole, 4-wire applications. It is designed for commercial and industrial cord and equipment connections that require a secure twist-lock connection.

Constructed with a rugged nylon/polycarbonate housing and solid one-piece brass contacts, the 89755 offers durability, reliable conductivity, and visible terminal inspection via a clear terminal chamber.

Key Features

  • NEMA configuration: L15-20P (male), 3-pole 4-wire
  • Electrical rating: 20A, 250V
  • Rugged nylon/polycarbonate housing resists impact, abrasion, sunlight, and chemicals
  • Solid one-piece brass contacts set in deep pockets for reduced heat rise
  • Heavy-duty brass combo-head terminal screws and included grounding screw
  • Clear terminal chamber for visual inspection, cord strain relief and rubber grommet for sealing
  • Grooved housing for enhanced grip

What this locking plug is for

The Morris 89755 is a twist-lock (locking) plug intended for 20A, 250V power connections where a secure, vibration-resistant connection is required. It is suitable for commercial and industrial cord and equipment applications that require the NEMA L15-20P configuration.

  • Use with devices and extension cords requiring a NEMA L15-20P (male) plug
  • Applications include equipment and cord sets in commercial or industrial environments

Electrical rating & NEMA configuration

This model is rated 20 amps at 250 volts and conforms to the NEMA L15-20P 3-pole, 4-wire configuration.

  • NEMA: L15-20P (locking plug, male)
  • Amperage: 20A
  • Voltage: 250V
  • Poles/Wires: 3-pole, 4-wire

Construction and materials

The 89755 combines a nylon/polycarbonate housing with solid one-piece brass contacts to balance mechanical durability with electrical performance.

  • Housing resists impact, abrasion, sunlight, and chemicals
  • Contacts are solid one-piece brass set in deep pockets to help reduce heat rise
  • Grooved housing improves grip during connection and disconnection

Installation and wiring

Strip the cord conductors, attach the line, neutral, and ground conductors to the brass terminal screws, and reassemble the housing using the included strain relief and rubber grommet to seal the cord entry.

  • Heavy-duty brass combo-head terminal screws secure conductors
  • Clear terminal chamber allows visual inspection of terminations
  • Includes grounding screw

Connector configuration and terminals

The 89755 is a male locking plug with heavy-duty power contacts and design features that aid reliable connections in demanding environments.

  • Male (plug) configuration for use with compatible L15-20R receptacles
  • Cord strain relief and rubber grommet provide environmental sealing at the cord entry

Before You Order

Confirm the model number and NEMA configuration (L15-20P) match the receptacle and equipment requirements before ordering.

  • Verify that a 20A, 250V, 3-pole 4-wire locking plug is the correct type for your application.
  • Confirm cord diameter and conductor size compatibility with the plug's terminal screws and strain relief before installation.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 89755 L15-20P Locking Plug, 20A 250V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU89755
NEMA ConfigurationL15-20P
Ampere Rating20A
Voltage250V
Poles / Wires3-Pole, 4-Wire
ConfigurationMale (plug)
Housing MaterialNylon/Polycarbonate
ContactsSolid one-piece brass
