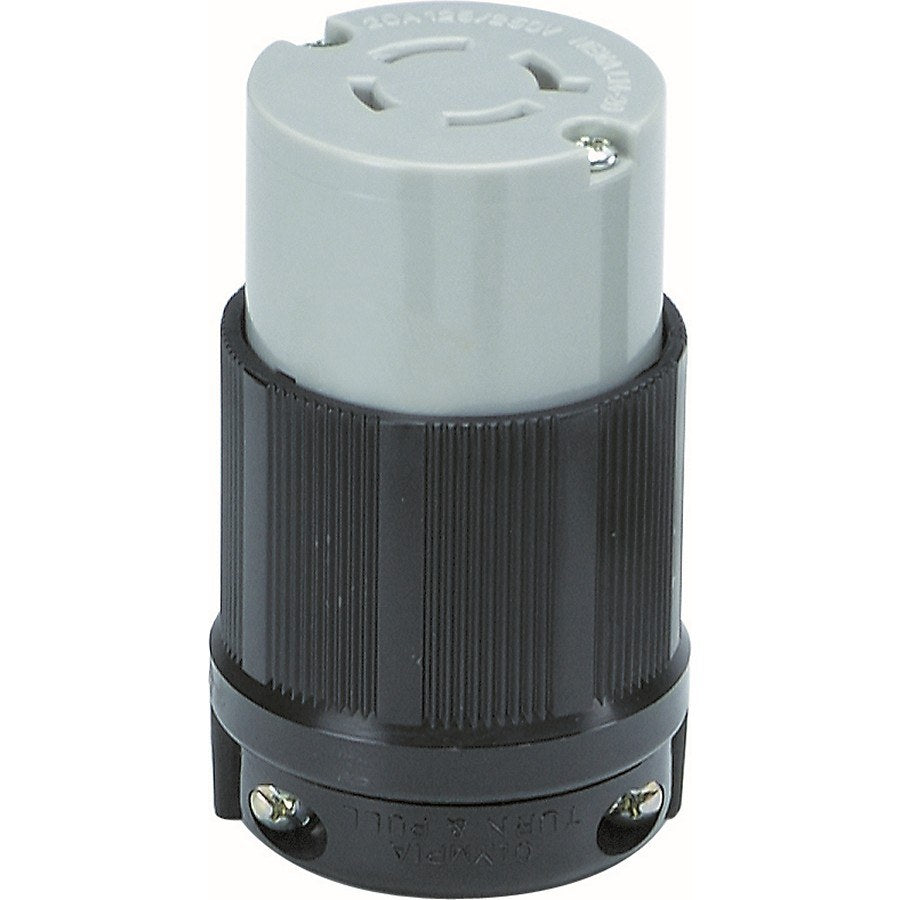

Morris 89754 L14-20C Locking Connector, 20A 125/250V

(No Ratings)
SKU: 89754
Price: $29.21
Free shipping on orders over $1,500

Description

Product Overview

The Morris 89754 is a female NEMA L14-20C locking connector rated 20A at 125/250V for 3-pole, 4-wire power connections.

It features a molded nylon/polycarbonate housing, solid one-piece brass contacts set in deep pockets, a grooved grip, clear terminal chamber for inspection, cord strain relief with rubber grommet, and includes a grounding screw.

Key Features

  • NEMA configuration: L14-20C (female), 3-pole 4-wire
  • Electrical rating: 20A, 125/250V
  • Nylon/polycarbonate housing
  • Solid one-piece brass power contacts set in deep pockets
  • Grooved housing for enhanced grip
  • Clear terminal chamber for visual inspection
  • Cord strain relief and rubber grommet included
  • Includes grounding screw

What this connector does

The Morris 89754 is a female locking connector in the NEMA L14-20C configuration. It provides a twist-lock connection for 20 amp, 125/250 volt circuits with three poles and four conductors (two hots, neutral, and ground).

Where it's used

This connector is intended for cord- or equipment-mounted use where a NEMA L14-20C female locking connector is required. The description references commercial and industrial settings.

Installation and wiring

The connector is assembled onto a cord or equipment cable. Conductors are stripped and secured under the brass terminal screws, and the housing is assembled with the provided strain relief and rubber grommet. A clear terminal chamber allows visual inspection of terminations.

  • Accepts three current-carrying conductors plus grounding conductor (3-pole, 4-wire).
  • Includes grounding screw.

Materials and construction

Housing material is nylon/polycarbonate. Power contacts are solid one-piece brass set in deep pockets. The housing includes a grooved surface for grip.

  • Clear terminal chamber for inspection
  • Heavy-duty brass combo-head terminal screws (as described in product data)

Key specifications

Use the following specifications to confirm selection for a particular application.

  • Catalog number: 89754
  • NEMA configuration: L14-20C (female)
  • Amperage: 20A
  • Voltage: 125/250V
  • Poles/Wires: 3-pole, 4-wire
  • Material: Nylon/polycarbonate housing; brass contacts
  • Includes: grounding screw, cord strain relief, rubber grommet

Before You Order

Confirm the catalog number and that an L14-20C female connector rated 20A, 125/250V meets your requirements.

  • Verify compatibility with the mating L14-20 plug or receptacle.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 89754 L14-20C Locking Connector, 20A 125/250V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU89754
TypeLocking Connector (female)
NEMA ConfigurationL14-20C
Ampere Rating20A
Voltage125/250V
Poles / Wires3-Pole 4-Wire
MaterialNylon/Polycarbonate housing; Brass contacts
Included ItemsGrounding screw, cord strain relief, rubber grommet
