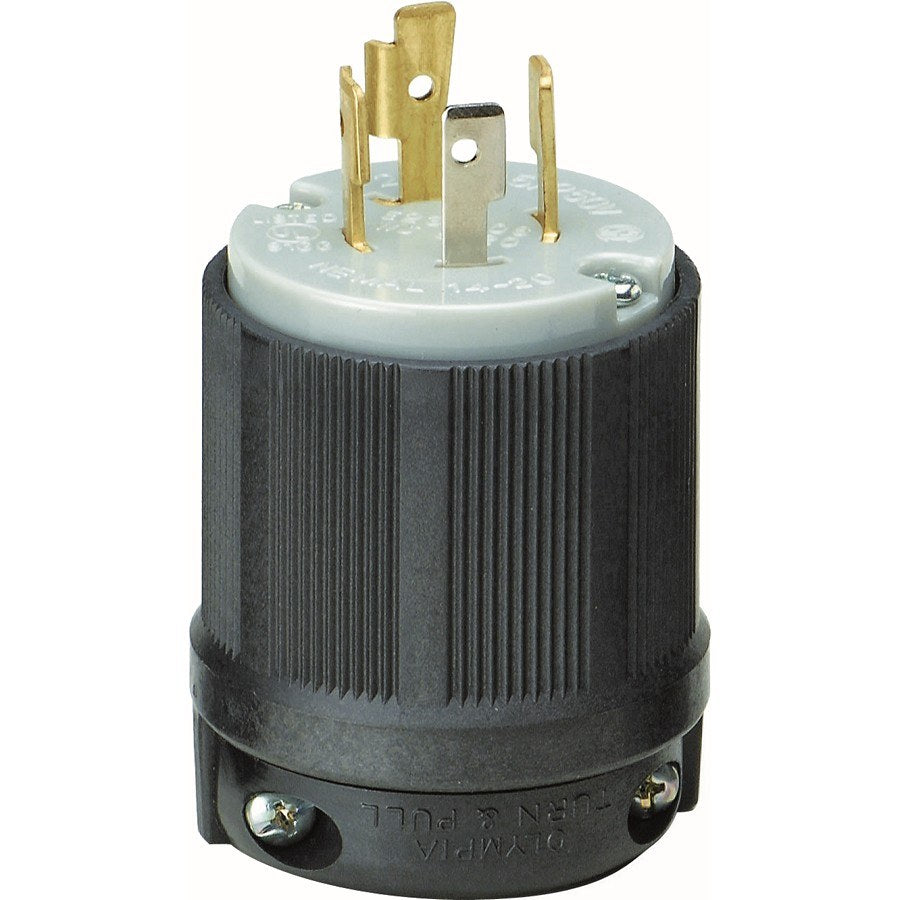

Morris 89752 L14-20P Locking Plug, 20A 125/250V

(No Ratings)
SKU: 89752
Price: $24.95
Free shipping on orders over $1,500

Description

Product Overview

The Morris 89752 is a NEMA L14-20P locking (male) plug rated 20A at 125/250V for 3-pole, 4-wire applications. It’s designed for cord and equipment connections in commercial and industrial environments.

Constructed of rugged nylon/polycarbonate with solid one-piece brass contacts set in deep pockets, the 89752 includes a clear terminal chamber, heavy-duty brass terminal screws, cord strain relief, rubber grommet, and a grounding screw.

Key Features

  • NEMA configuration: L14-20P (male), 3-pole, 4-wire
  • Electrical rating: 20A, 125/250V
  • Housing: durable nylon/polycarbonate resistant to impact, abrasion, sunlight, and chemicals
  • Contacts: solid one-piece brass set in deep pockets for conductivity and reduced heat rise
  • Clear terminal chamber for visual inspection; heavy-duty brass combo-head terminal screws
  • Cord strain relief and rubber grommet; includes grounding screw
  • Grooved housing for improved grip during connection/disconnection

Function and intended use

This locking plug provides a NEMA L14-20P (male) twist-lock connection for 20A, 125/250V, 3-pole 4-wire power circuits. It is intended for cord and equipment power connections in commercial and industrial settings where a secure, twist-lock contact is required.

  • Use with cables and equipment requiring NEMA L14-20P connections
  • Suitable for applications that need a secure, vibration-resistant power connection

Electrical rating and configuration

Rated at 20 amperes and 125/250 volts, the 89752 follows the NEMA L14-20P configuration: three poles plus equipment grounding conductor arranged for a twist-lock engagement.

  • NEMA configuration: L14-20P (male)
  • Amperage: 20A
  • Voltage: 125/250V
  • Poles/Wires: 3-pole, 4-wire (includes grounding conductor)

Materials and durability

The plug housing is molded from a nylon/polycarbonate blend chosen for resistance to impact, abrasion, sunlight, and common chemicals. Power contacts are solid one-piece brass set in deep pockets to maintain contact and minimize heat rise during use.

  • Housing material: nylon/polycarbonate
  • Contacts: solid one-piece brass
  • Features a rubber grommet for cord sealing

Installation and wiring

Installation requires stripping the cord conductors, seating them under the heavy-duty brass combo-head terminal screws, and assembling the housing with the provided strain relief and rubber grommet. A clear terminal chamber allows visual verification of conductor placement.

  • Terminal screws: heavy-duty brass combo-head
  • Includes grounding screw
  • Clear terminal chamber for inspection
  • Cord strain relief included to secure cable

Connections and physical details

The 89752’s grooved housing improves grip for making and releasing the twist-lock connection. Terminals are set deep within the housing to protect contacts and ensure secure engagement when mated with an appropriate L14-20R receptacle.

  • Grooved housing for enhanced grip
  • Deep-pocket power contacts
  • Designed to mate with NEMA L14-20R receptacles

Before You Order

Confirm the model number and quantity required before ordering.

  • Verify NEMA L14-20 compatibility with your mating receptacle and cable requirements.
  • This page covers the single Morris 89752 locking plug SKU; check cord diameter and conductor size compatibility during installation.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 89752 L14-20P Locking Plug, 20A 125/250V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU89752; '89752
Product typeLocking Plug (male)
NEMA configurationL14-20P
Ampere Rating20A
Voltage125/250V
Poles / Wires3-Pole, 4-Wire
Housing materialNylon/Polycarbonate
ContactsSolid one-piece brass
FeaturesClear terminal chamber, cord strain relief, rubber grommet, grounding screw
