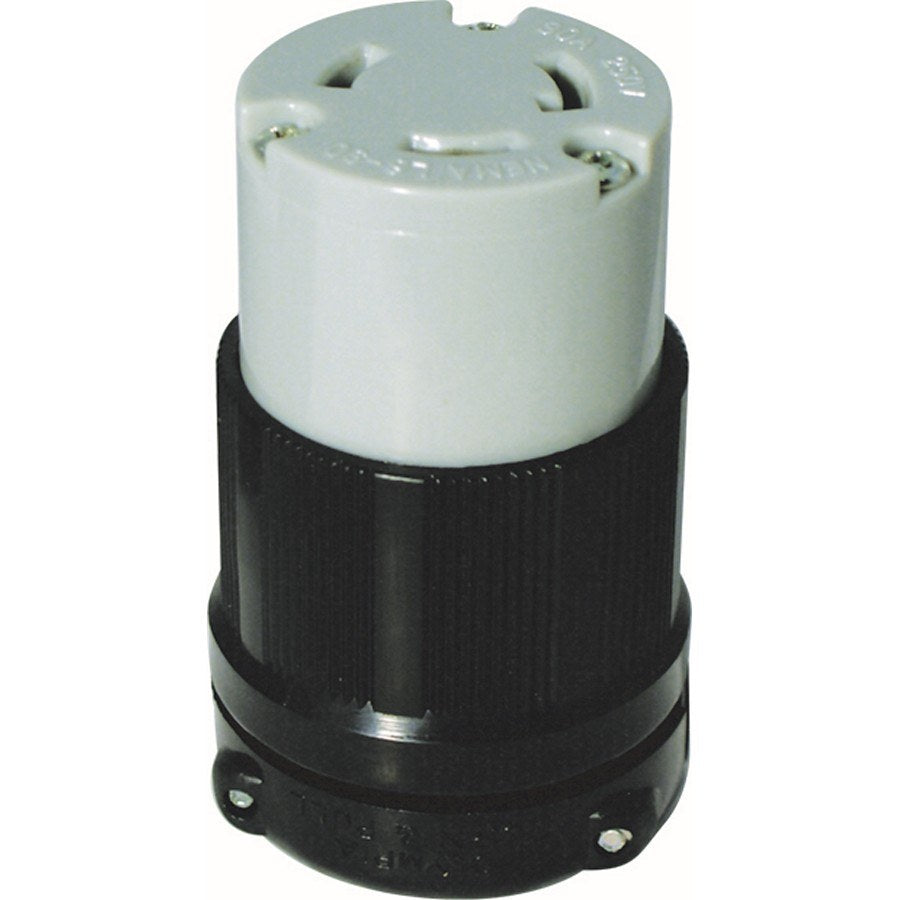

Morris 89751 L6-30C Locking Connector, 30A 250V

(No Ratings)
SKU: 89751
Price: $37.57
Free shipping on orders over $1,500

Description

Product Overview

The Morris 89751 is a NEMA L6-30C female locking connector rated 30A at 250V for 2-pole, 3-wire power connections.

It features a rugged nylon/polycarbonate housing, one-piece brass power contacts set in deep pockets, a clear terminal chamber for inspection, and integrated cord strain relief with rubber grommet.

Key Features

  • NEMA configuration: L6-30C (female), 2-pole 3-wire
  • Electrical rating: 30A, 250V
  • Housing: durable nylon/polycarbonate resistant to impact, abrasion, sunlight, and chemicals
  • Contacts: solid one-piece brass set in deep pockets for improved conductivity and reduced heat rise
  • Clear terminal chamber for visual inspection and heavy-duty brass combo-head terminal screws
  • Included grounding screw, cord strain relief, and rubber grommet to seal the cord entry
  • Grooved housing for enhanced grip

What this connector is for

The Morris 89751 is a female locking connector with a NEMA L6-30C configuration designed for 30A, 250V 2-pole 3-wire applications. It is intended for use on cords and equipment that require a locking connection in commercial and industrial settings.

  • Use for 30A, 250V single-phase connections requiring a locking receptacle/mating plug
  • Typical applications include equipment and extension cords in commercial and industrial environments

Construction and materials

The housing is molded from a nylon/polycarbonate blend engineered to resist impact, abrasion, sunlight, and many chemicals. Power contacts are solid one-piece brass and are seated in deep pockets to promote conductivity and reduce heat rise.

  • Rugged nylon/polycarbonate housing
  • Solid one-piece brass contacts
  • Heavy-duty brass combo-head terminal screws
  • Grooved exterior for better grip

Installation and wiring

The connector is assembled on a cord by stripping conductors, seating them under the brass terminal screws (line, neutral, and ground), and securing the housing with the provided strain relief and rubber grommet. A clear terminal chamber allows visual inspection of terminations; a grounding screw is included.

  • Strip conductors and connect to the brass terminal screws (follow local electrical code)
  • Use the cord strain relief and rubber grommet to secure and seal the cord entry
  • Visual inspection of terminals is possible through the clear terminal chamber

Technical specifications

Key electrical and configuration details for quick reference.

  • Catalog number: 89751 (Morris)
  • NEMA configuration: L6-30C (female)
  • Amperage/Voltage: 30A, 250V
  • Poles/Wires: 2-pole, 3-wire
  • Materials: Nylon/polycarbonate housing; brass contacts
  • Includes: Grounding screw, cord strain relief, rubber grommet

Before You Order

Confirm the model number and NEMA configuration (L6-30C) and ensure this female locking connector matches the mating plug or receptacle and the required 30A/250V rating for your application.

  • Verify cord size and conductor stripping lengths are compatible with the terminal screws before ordering.
  • Follow local electrical codes and wiring practices when installing; consult a qualified electrician if uncertain.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 89751 L6-30C Locking Connector, 30A 250V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU89751; '89751
TypeLocking Connector (female)
NEMA ConfigurationL6-30C
Ampere Rating30A
Voltage250V
Poles / Wires2-Pole 3-Wire
MaterialNylon/Polycarbonate housing; Brass contacts
Included ComponentsGrounding screw, cord strain relief, rubber grommet
