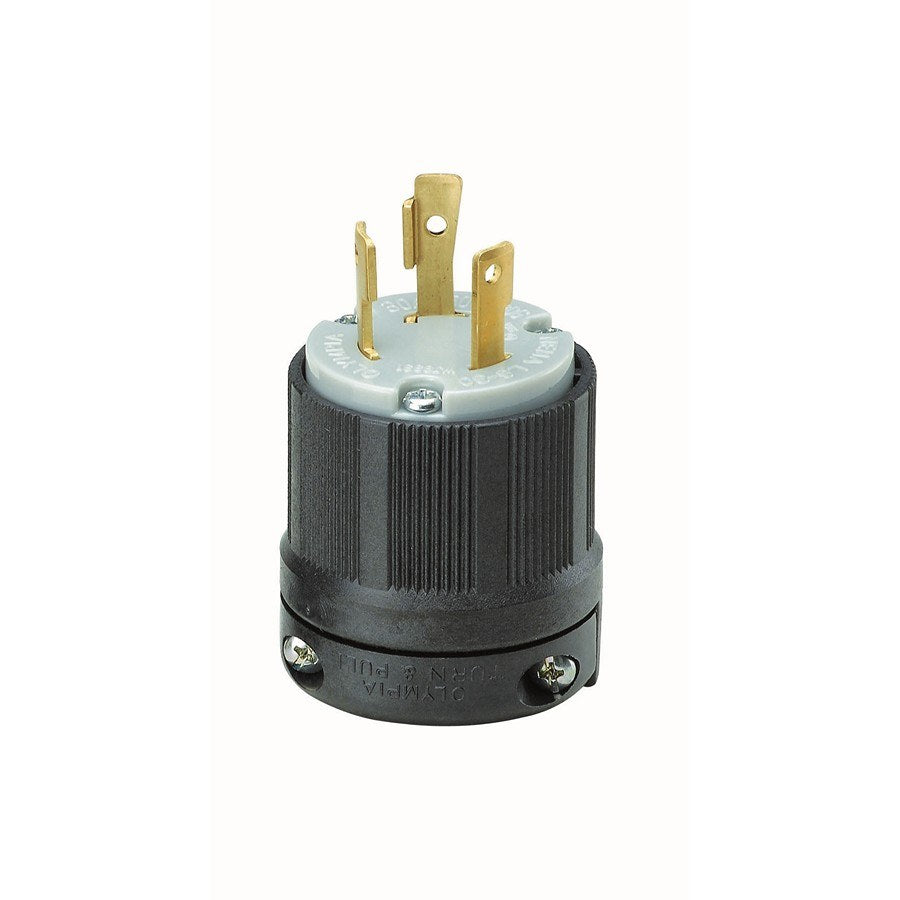

Morris 89750 L6-30P Locking Plug, 30A 250V

(No Ratings)
SKU: 89750
Price: $27.54
Free shipping on orders over $1,500

Description

Product Overview

The Morris 89750 is a NEMA L6-30P locking plug (male) rated 30A at 250V for 2-pole 3-wire applications.

Designed for commercial and industrial cord and equipment connections, it features a rugged nylon/polycarbonate housing, solid one-piece brass contacts set in deep pockets, and a clear terminal chamber for inspection.

Key Features

  • NEMA configuration: L6-30P (male), 2-pole 3-wire
  • Rated 30 amperes, 250 volts
  • Rugged nylon/polycarbonate housing resists impact, abrasion, sunlight, and chemicals
  • All contacts are solid one-piece brass for conductivity and reduced heat rise
  • Heavy-duty brass combo-head terminal screws and deep contact pockets
  • Clear terminal chamber for visual inspection
  • Cord strain relief and rubber grommet for environmental sealing; includes grounding screw
  • Grooved housing for enhanced grip

Function and intended use

The Morris 89750 L6-30P is a locking male plug intended for 30A, 250V connections where a secure, twist-lock connection is required. It is used on cords and equipment in commercial and industrial settings to prevent accidental disconnection.

Electrical rating and configuration

This device is rated for 30 amperes at 250 volts and follows the NEMA L6-30P configuration. It is a 2-pole, 3-wire male locking plug suitable for matching with NEMA L6-30R receptacles.

  • Amperage: 30A
  • Voltage: 250V
  • NEMA configuration: L6-30P (male)
  • Poles/Wires: 2-pole, 3-wire

Materials and durability

The housing combines nylon and polycarbonate to resist impact, abrasion, sunlight, and chemical exposure. Power contacts are solid, one-piece brass set in deep pockets for reliable conductivity and reduced heat rise under load.

  • Housing: nylon/polycarbonate
  • Contacts: solid one-piece brass
  • Features a grooved housing for improved grip

Installation overview

The plug assembles onto a cord with cord strain relief and a rubber grommet to help seal the termination. Terminals use heavy-duty brass combo-head screws and the unit includes a grounding screw. A clear terminal chamber allows visual inspection of conductor connections after assembly.

  • Strip the cord and connect conductors to the brass terminal screws (line, neutral, ground)
  • Assemble housing with provided strain relief and rubber grommet
  • Use the clear terminal chamber to verify proper termination

Specifications

Reference specifications for part identification and selection.

  • Brand: Morris
  • Catalog No.: 89750
  • Type: Locking Plug (male)
  • NEMA Configuration: L6-30P
  • Amperage: 30A
  • Voltage: 250V
  • Poles/Wires: 2-Pole 3-Wire
  • Material: Nylon/Polycarbonate housing; brass contacts

Before You Order

Confirm the model number and quantity required before ordering. Ensure the L6-30P configuration (NEMA L6-30P) and the 30A/250V rating match the mating receptacle and the electrical requirements of your equipment.

  • Verify compatibility with the mating NEMA L6-30R receptacle.
  • Confirm conductor size and type are appropriate for 30A termination and local electrical codes.
  • If unsure about wiring or code compliance, consult a qualified electrician.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 89750 L6-30P Locking Plug, 30A 250V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU89750; '89750
Model / NEMAL6-30P
Ampere Rating30A
Voltage250V
Poles / Wires2-Pole 3-Wire
ConfigurationMale locking plug
Housing MaterialNylon / Polycarbonate
Contact MaterialSolid one-piece brass
Included ItemsGrounding screw; rubber grommet; cord strain relief
