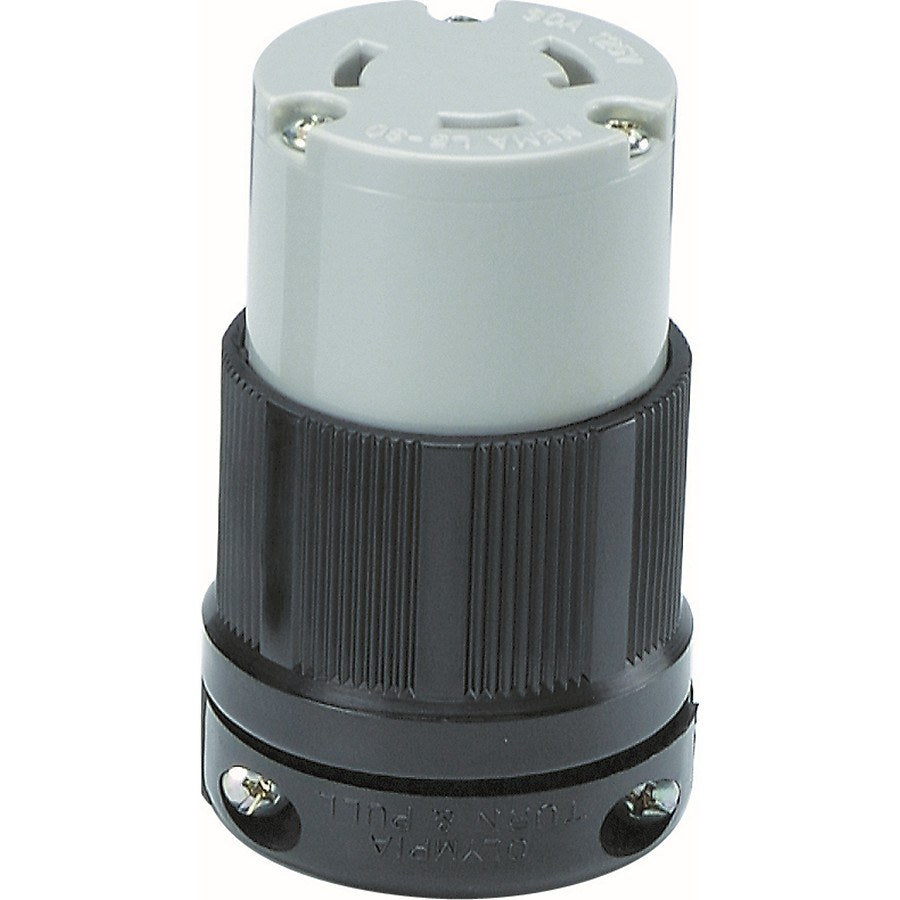

Morris 89749 L5-30C Locking Connector, 30A 125V

(No Ratings)
SKU: 89749
Price: $34.49
Free shipping on orders over $1,500

Description

Product Overview

The Morris 89749 is a female NEMA L5-30C locking connector rated for 30A and 125V. Its configuration is 2-pole, 3-wire.

Designed for cord and equipment power connections in commercial and industrial settings, it has a grooved housing, brass contacts, terminal screws, cord strain relief, and a rubber grommet.

Key Features

  • NEMA L5-30C configuration; 30A, 125V; 2-pole, 3-wire
  • Female locking connector
  • Nylon/polycarbonate housing described as resistant to impact, abrasion, sunlight, and chemicals
  • Solid one-piece brass contacts set in deep pockets
  • Grooved housing, brass combo-head terminal screws, and clear terminal chamber
  • Cord strain relief, rubber grommet, and grounding screw

NEMA L5-30C Connector Configuration

The Morris 89749 is a female NEMA L5-30C locking connector rated 30A at 125V. It uses a 2-pole, 3-wire configuration for locking power connections.

Housing, Contacts, and Terminal Features

The housing is made from nylon and polycarbonate and has a grooved surface for grip. The listed construction is described as resistant to impact, abrasion, sunlight, and chemicals.

Solid one-piece brass contacts sit in deep pockets. Heavy-duty brass combo-head terminal screws and a clear terminal chamber provide access to and visibility of the terminals.

  • Cord strain relief and rubber grommet
  • Grounding screw included

Applications and Cord Connection

This connector is intended for 30A, 125V NEMA L5-30C locking power connections on cords and equipment in commercial and industrial settings.

The described assembly connects line, neutral, and ground conductors to the brass terminal screws, then assembles the housing with the strain relief.

Before You Order

Confirm that the NEMA L5-30C configuration and 30A, 125V rating match the intended cord or equipment connection.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 89749 L5-30C Locking Connector, 30A 125V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number89749
Product TypeLocking connector
NEMA ConfigurationL5-30C
Ampere Rating30A
Voltage125V
Poles and wires2-pole, 3-wire
ConfigurationFemale
Housing MaterialNylon/polycarbonate
Contact MaterialBrass
