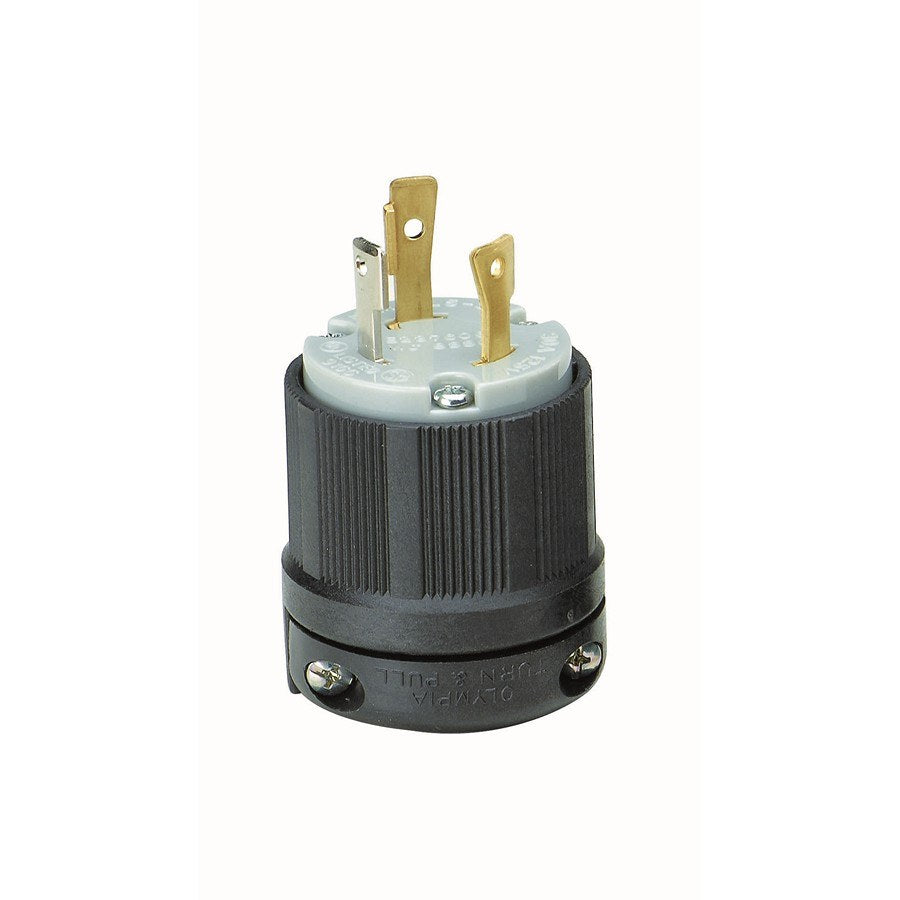

Morris 89748 L5-30P Locking Plug, 30A 125V

(No Ratings)
SKU: 89748
Price: $30.33
Free shipping on orders over $1,500

Description

Product Overview

The Morris 89748 is a male NEMA L5-30P locking plug rated 30A at 125V. Its 2-pole, 3-wire configuration is intended for locking power connections on cords and equipment in commercial and industrial settings.

The plug has a nylon/polycarbonate housing and solid one-piece brass contacts. A clear terminal chamber allows visual inspection of the terminals, while the grooved housing provides a grip surface.

Key Features

  • NEMA L5-30P male configuration, rated 30A and 125V
  • Nylon/polycarbonate housing designed to resist impact, abrasion, sunlight, and chemicals
  • Solid one-piece brass contacts set in deep pockets
  • Brass combination-head terminal screws and a clear terminal chamber
  • Cord strain relief, rubber grommet, and included grounding screw

NEMA L5-30P configuration

The Morris 89748 is a 30A, 125V male locking plug with a 2-pole, 3-wire NEMA L5-30P configuration. It is described for locking power connections on cords and equipment in commercial and industrial settings.

Housing, contacts, and terminal access

The housing is made of nylon and polycarbonate and is described as resistant to impact, abrasion, sunlight, and chemicals. Its grooved exterior provides an enhanced grip.

Solid one-piece brass contacts are set in deep pockets. Heavy-duty brass combination-head terminal screws provide the conductor connection points, and the clear terminal chamber allows visual inspection of the terminals.

  • Cord strain relief and a rubber grommet are included to seal from the environment.
  • A grounding screw is included.

Cord connection and assembly

The stated assembly process is to strip the cord, connect the line, neutral, and ground conductors to the brass terminal screws, then assemble the housing with the strain relief.

Before You Order

Confirm the model number and quantity required before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 89748 L5-30P Locking Plug, 30A 125V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number89748
Product TypeLocking plug
NEMA ConfigurationL5-30P
ConfigurationMale
Ampere Rating30A
Voltage125V
Poles and wires2-pole, 3-wire
Housing MaterialNylon/polycarbonate
Contact MaterialBrass
