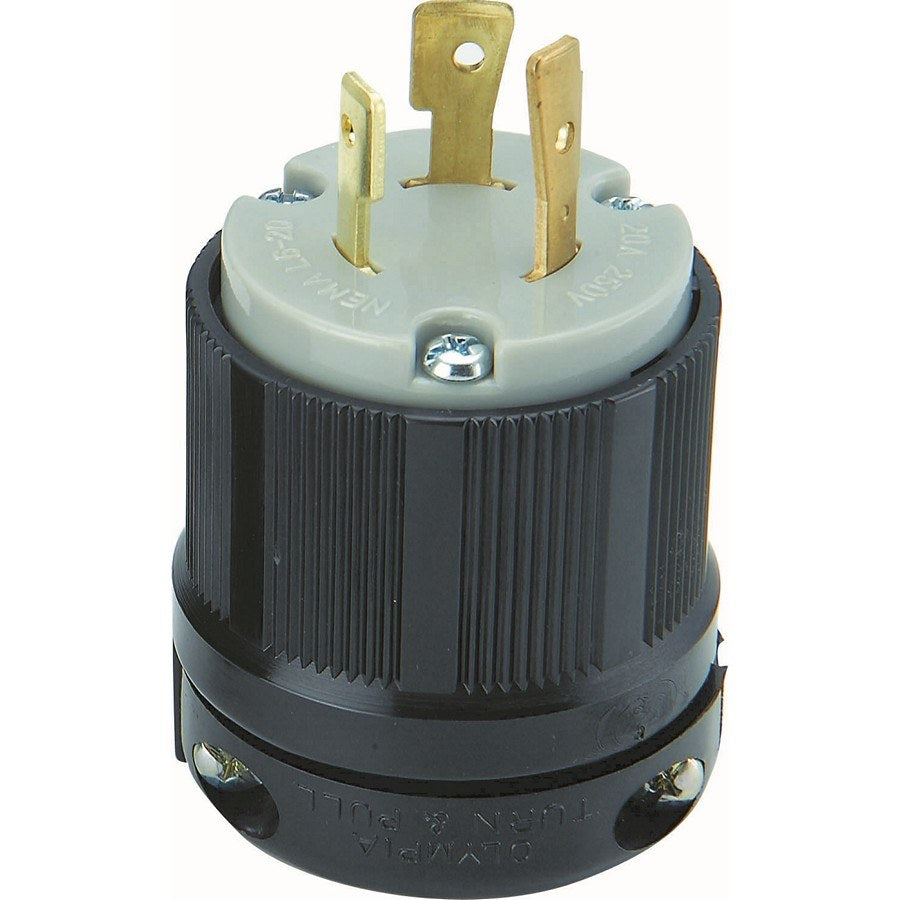

Morris 89746 L6-20P Locking Plug, 20A 250V

(No Ratings)
SKU: 89746
Price: $20.81
Free shipping on orders over $1,500

Description

Product Overview

The Morris 89746 is a NEMA L6-20P locking plug (male) rated 20A at 250V for industrial and commercial cord and equipment connections.

Constructed with a rugged nylon/polycarbonate housing and solid one-piece brass contacts, it includes a clear terminal chamber, cord strain relief, rubber grommet, and grounding screw.

Key Features

  • NEMA configuration: L6-20P (male), 2-pole 3-wire
  • Electrical rating: 20A, 250V
  • Rugged nylon/polycarbonate housing resists impact, abrasion, sunlight, and chemicals
  • Solid one-piece brass power contacts set in deep pockets for conductivity and reduced heat rise
  • Clear terminal chamber for visual inspection, heavy-duty brass combo-head terminal screws
  • Cord strain relief, rubber grommet to seal the cable entry, and included grounding screw

Function and intended use

The Morris 89746 is a NEMA L6-20P locking plug (male) intended for 20A, 250V locking power connections on cords and equipment in commercial and industrial settings.

  • NEMA configuration: L6-20P, suitable where a 2-pole 3-wire 20A/250V locking connection is specified
  • Used for cordsets, portable equipment, and machinery requiring a locking-style power connection

Electrical rating and contact design

This locking plug is rated 20 amps at 250 volts and uses solid one-piece brass power contacts designed for reliable conductivity and to reduce heat rise.

  • Rating: 20A, 250V
  • Contacts: solid one-piece brass set in deep pockets for mechanical retention and contact security

Installation and wiring

Wiring the 89746 requires stripping the cord and securing line, neutral, and ground conductors to the brass terminal screws before assembling the housing and applying the strain relief.

  • Terminal type: heavy-duty brass combo-head screws
  • Clear terminal chamber provides visual inspection of terminations
  • Includes grounding screw; use appropriate wire sizes per local code and application

Materials and mechanical features

The housing combines nylon and polycarbonate for impact, abrasion, sunlight, and chemical resistance, and includes a grooved exterior for improved grip.

  • Housing: nylon/polycarbonate
  • Grip: grooved housing for handling
  • Sealing: rubber grommet and cord strain relief to help protect the cable entry

Before You Order

Confirm the model number and that a NEMA L6-20P (20A, 250V) locking plug is the correct configuration for your equipment and local electrical requirements before ordering.

  • Verify compatibility with the mating receptacle and cord conductor sizes.
  • This listing is for a single locking plug (male).

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 89746 L6-20P Locking Plug, 20A 250V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU89746; '89746
Model / Handlemorris-89746-l6-20p-locking-plug
ProductL6-20P Locking Plug (male)
NEMA configurationL6-20P
Ampere Rating20A
Voltage250V
Poles / Wires2-Pole 3-Wire
MaterialNylon/Polycarbonate housing; solid brass contacts
FeaturesClear terminal chamber, cord strain relief, rubber grommet, grounding screw
