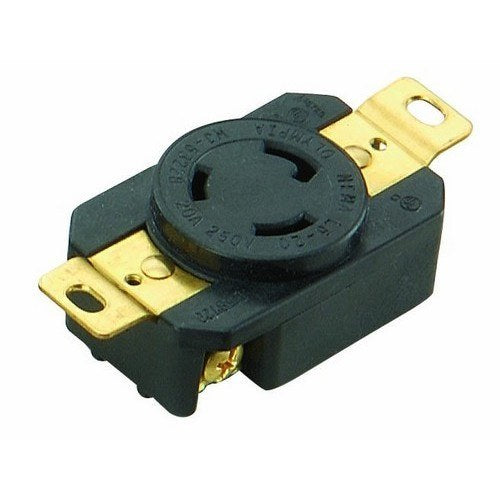

Morris 89738 L6-20R Locking Receptacle, 20A 250V

(No Ratings)
SKU: 89738
Price: $23.13
Free shipping on orders over $1,500

Description

Product Overview

The Morris 89738 is a NEMA L6-20R locking receptacle intended for panel- or box-mounted installations where a 20A, 250V locking outlet is required.

Features include a nylon/polycarbonate housing, solid one-piece brass power contacts set in deep pockets, heavy-duty brass terminal screws, a clear terminal chamber for visual inspection, and an included grounding screw.

Key Features

  • NEMA L6-20R configuration (2-pole, 3-wire) — female locking receptacle
  • Electrical rating: 20A, 250V
  • Nylon/polycarbonate housing resistant to impact, abrasion, sunlight, and many chemicals
  • Solid one-piece brass power contacts set in deep pockets
  • Heavy-duty brass combo-head terminal screws and clear terminal chamber for inspection
  • Includes grounding screw
  • Grooved housing for improved grip

What this receptacle does

The Morris 89738 provides a NEMA L6-20R twist-lock outlet for 20A, 250V circuits and is intended for secure panel- or box-mounted use.

Where this receptacle is used

Use the 89738 where a NEMA L6-20R locking receptacle is required by the plug or equipment. It is presented for panel or box mounting in applications specifying a 20A, 250V, 2-pole, 3-wire receptacle.

Mounting and wiring considerations

The receptacle is designed for installation in a box or panel. Terminate the two power conductors and the equipment ground on the provided brass terminal screws. The clear terminal chamber permits visual inspection of conductor terminations.

  • Mount in an appropriately sized box or panel cutout for a NEMA locking receptacle
  • Use the heavy-duty brass combo-head terminal screws to secure conductors
  • Follow applicable local electrical codes for grounding and termination

Materials and contact design

The housing is molded from a nylon/polycarbonate blend. Power contacts are solid one-piece brass set in deep pockets; these features are described in the product information.

  • Nylon/polycarbonate housing
  • Solid one-piece brass contacts
  • Deep contact pockets and grooved housing

Technical specifications

Key electrical and configuration details to confirm compatibility with your plug and circuit.

  • NEMA configuration: L6-20R (locking receptacle, female)
  • Amperage: 20A
  • Voltage: 250V
  • Poles/Wires: 2-pole, 3-wire
  • Housing material: Nylon/Polycarbonate
  • Contacts: Solid one-piece brass
  • Included: Grounding screw; terminal screws; clear terminal chamber

Before You Order

Confirm the model number and that a NEMA L6-20R (20A, 250V, 2-pole 3-wire) receptacle is appropriate for your plug and circuit.

  • Verify NEMA configuration (L6-20R) matches your plug
  • Confirm mounting cutout and box/panel fit
  • Ensure installation and grounding follow local electrical codes

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 89738 L6-20R Locking Receptacle, 20A 250V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU89738
Model / Handlemorris-89738-l6-20r-locking-receptacle
TypeLocking Receptacle (female)
NEMA ConfigurationL6-20R
Ampere Rating20A
Voltage250V
Poles / Wires2-Pole, 3-Wire
Housing MaterialNylon/Polycarbonate
ContactsSolid one-piece brass
Included HardwareGrounding screw; terminal screws
