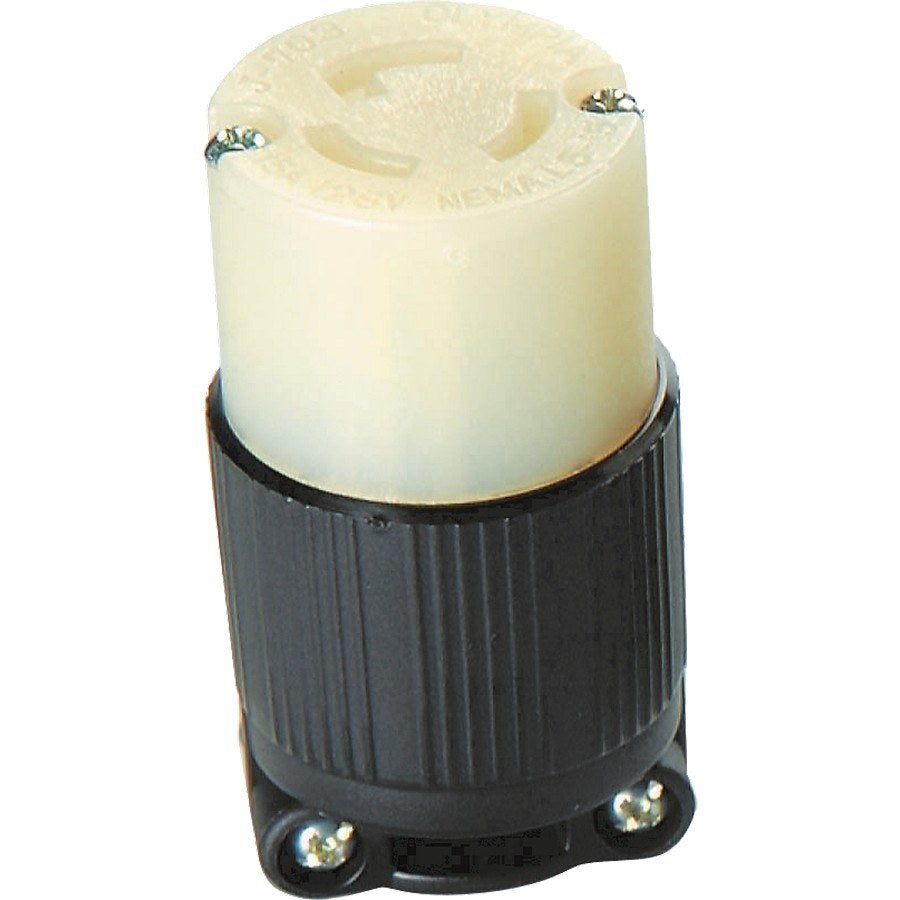

Morris 89730 L5-15C Locking Connector, 15A 125V

(No Ratings)
SKU: 89730
Price: $17.17
Free shipping on orders over $1,500

Description

Product Overview

The Morris 89730 is a NEMA L5-15C female locking connector rated 15A, 125V for 2-pole 3-wire applications. It is designed for locking power connections on cords and equipment in commercial and industrial settings.

Constructed of rugged nylon/polycarbonate with solid one-piece brass contacts in deep pockets, the connector includes a clear terminal chamber, cord strain relief with rubber grommet, and a grounding screw for secure, inspectable terminations.

Key Features

  • NEMA configuration: L5-15C (female), 15A, 125V, 2-pole 3-wire
  • Rugged nylon/polycarbonate housing resistant to impact, abrasion, sunlight, and chemicals
  • Solid one-piece brass power contacts set in deep pockets to reduce heat rise
  • Heavy-duty brass combo-head terminal screws and included grounding screw
  • Clear terminal chamber for visual inspection of terminations
  • Cord strain relief with rubber grommet to seal and secure cable
  • Grooved housing for enhanced grip during mating and un-mating

What this connector does

Direct answer: The Morris 89730 is a female NEMA L5-15C locking connector used to provide a secure 15A, 125V 2-pole 3-wire power connection between cords and equipment where a locking plug/receptacle is required.

Typical applications include locking power connections on cords and equipment in commercial and industrial environments where a captive, twist-lock mating is needed to prevent accidental disconnection.

  • Provides a locking connection compatible with NEMA L5-15 (locking) plugs
  • Intended for cord- or equipment-mounted female connections

Materials and durability

Direct answer: The housing is molded from nylon/polycarbonate and the power contacts are solid one-piece brass, designed for durability and reliable conductivity.

Design features that support durability and safe use include deep contact pockets to secure power contacts, heavy-duty brass terminal screws, a grooved housing for better grip, and a rubber grommeted strain relief to protect the cord entry.

  • Housing resists impact, abrasion, sunlight (UV), and chemicals
  • Brass contacts for conductivity and reduced heat rise
  • Clear terminal chamber allows visual verification of conductor seating

Installation and wiring

Direct answer: The connector is field-wired by stripping the cord conductors, securing them under the brass terminal screws, and assembling the housing with the provided strain relief and rubber grommet.

The product includes a grounding screw and a clear terminal chamber for inspection after wiring to help confirm correct conductor placement and secure connections.

  • Strip cord conductors to appropriate length and attach to line, neutral, and ground terminals under the brass combo-head screws
  • Assemble housing and engage cord strain relief; use the rubber grommet to seal the cord entry
  • Visual inspection through the clear terminal chamber recommended to confirm terminations

Technical specifications

Direct answer: Key electrical and configuration specifications identify this exact SKU for selection and compatibility checks.

  • Brand: Morris
  • Catalog No.: 89730
  • NEMA configuration: L5-15C (female)
  • Amperage: 15A
  • Voltage: 125V
  • Poles/Wires: 2-pole, 3-wire
  • Material: Nylon/Polycarbonate housing; brass contacts
  • Includes: Grounding screw, rubber grommeted strain relief, clear terminal chamber

Before You Order

Confirm the model number and the NEMA configuration (L5-15C) match the mating plug or receptacle and that 15A/125V ratings meet your circuit requirements.

  • Verify you need a female locking connector (cord or equipment-mounted) with a 2-pole 3-wire L5-15C configuration.
  • Confirm cable conductor sizes and strip lengths appropriate for the connector's terminal screws before purchase.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 89730 L5-15C Locking Connector, 15A 125V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU89730
Model / Handlemorris-89730-l5-15c-locking-connector
NEMA ConfigurationL5-15C (female)
Ampere Rating15A
Voltage125V
Poles / Wires2-Pole 3-Wire
MaterialNylon/Polycarbonate housing; brass contacts
