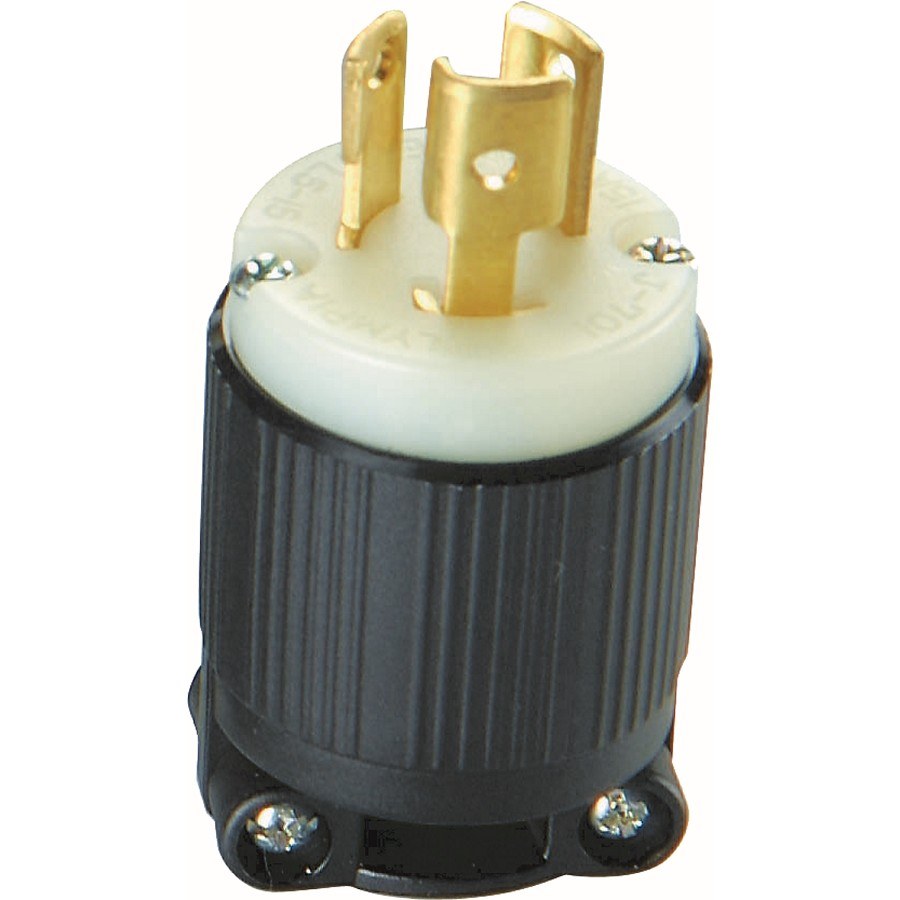

Morris 89729 L5-15P Locking Plug, 15A 125V

(No Ratings)
SKU: 89729
Price: $13.59
Free shipping on orders over $1,500

Description

Product Overview

The Morris 89729 is a NEMA L5-15P locking plug (male) rated 15A at 125V for use on cords and equipment requiring a twist-lock connection.

Features include a nylon/polycarbonate housing, solid one-piece brass power contacts set in deep pockets, heavy-duty brass terminal screws, a clear terminal chamber for inspection, and cord strain relief with a rubber grommet.

Key Features

  • NEMA configuration: L5-15P (male), 2-pole 3-wire
  • Rated 15A, 125V
  • Nylon/polycarbonate housing
  • Solid one-piece brass power contacts set in deep pockets
  • Heavy-duty brass combo-head terminal screws and included grounding screw
  • Clear terminal chamber for visual inspection; cord strain relief and rubber grommet

Function and intended use

The Morris 89729 is a male NEMA L5-15P locking plug specified for 15A, 125V connections on cords and equipment that require a twist-lock (locking) connection.

  • Provides a twist-lock connection for 2-pole, 3-wire L5-15 applications
  • Intended for use with cords and compatible receptacles rated L5-15

Construction and materials

The housing is molded from nylon/polycarbonate. Power contacts are solid one-piece brass set in deep pockets. The unit includes heavy-duty brass combo-head terminal screws, a clear terminal chamber for visual inspection, a cord strain relief, and a rubber grommet.

  • Nylon/polycarbonate housing
  • Solid one-piece brass contacts
  • Heavy-duty brass combo-head terminal screws
  • Clear terminal chamber
  • Cord strain relief and rubber grommet; grounding screw included

Electrical rating and configuration

Electrical and configuration details are those listed for the product: NEMA L5-15P, 15A, 125V, 2-pole 3-wire. Confirm compatibility with the mating receptacle and the circuit supplying the connection.

  • NEMA configuration: L5-15P (male)
  • Amperage: 15A
  • Voltage: 125V
  • Poles/Wires: 2-pole, 3-wire

Installation overview

Typical assembly requires stripping the cord conductors, connecting line, neutral, and ground to the brass terminal screws, and assembling the housing with the cord strain relief and grommet. The clear terminal chamber permits visual inspection of terminations after assembly.

  • Strip conductors and secure to brass combo-head terminal screws
  • Install rubber grommet and cord strain relief when assembling housing
  • Grounding screw is included for the equipment grounding conductor

Before You Order

Confirm the NEMA configuration (L5-15P) and electrical rating (15A, 125V) match your receptacle and circuit before ordering.

  • Verify cord diameter compatibility with the plug's cord strain relief and rubber grommet during installation.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 89729 L5-15P Locking Plug, 15A 125V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog number89729
Product typeLocking Plug (male)
NEMA configurationL5-15P
Ampere Rating15A
Voltage125V
Poles / Wires2-Pole 3-Wire
Housing materialNylon/Polycarbonate
ContactsSolid one-piece brass
Included AccessoriesGrounding screw; rubber grommet; cord strain relief
SKU'89729
Price13.59
