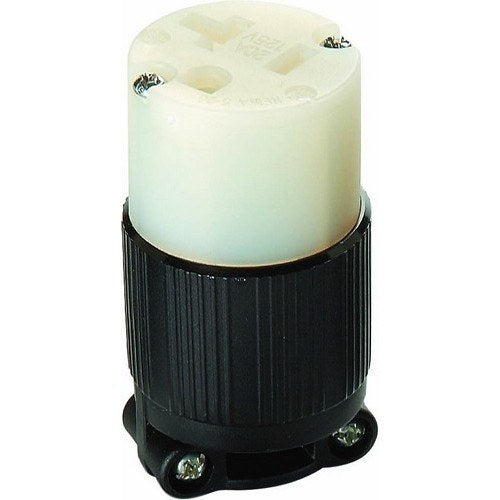

Morris 89615 5-20C Straight-Blade Connector, 20A 125V

(No Ratings)
SKU: 89615
Price: $27.50
Free shipping on orders over $1,500

Description

Product Overview

The Morris 89615 is a NEMA 5-20C female straight-blade connector rated 20A at 125V for 2-pole, 3-wire cord and equipment connections.

It features a rugged nylon/polycarbonate housing, solid one-piece brass contacts, heavy-duty terminal screws, a clear terminal chamber for inspection, and built-in cord strain relief.

Key Features

  • NEMA 5-20C configuration, 20A, 125V, 2-pole 3-wire (female)
  • Rugged nylon/polycarbonate housing resists impact, abrasion, sunlight, and chemicals
  • All contacts are solid one-piece brass; power contacts set in deep pockets
  • Heavy-duty brass combo-head terminal screws and included grounding screw
  • Clear terminal chamber for visual inspection and rubber grommet seal
  • Cord strain relief for secure cable clamping; grooved housing for enhanced grip

What this connector does

The Morris 89615 is a female straight-blade connector designed for 20A, 125V NEMA 5-20C applications. It provides a 2-pole, 3-wire connection for cords and equipment that accept the 5-20P plug configuration.

  • Used to terminate power cords or provide a field-replaceable female connector on equipment
  • Intended for applications requiring a 20A/125V straight-blade connection

Materials and durability

The housing combines nylon and polycarbonate to resist impact, abrasion, sunlight, and many chemicals. Contacts are solid one-piece brass for consistent conductivity and reduced heat rise.

  • Grooved housing improves grip during insertion and removal
  • Clear terminal chamber allows visual inspection of terminations
  • Includes a rubber grommet to help seal the cord entry and a grounding screw

Installation and wiring

Wire the connector by stripping the cord conductors and securing line, neutral, and ground under the heavy-duty brass combo-head terminal screws. The connector ships with cord strain relief to clamp the cable and protect terminations.

  • Terminal screws are heavy-duty brass combo-head for slotted or Philips drivers
  • Power contacts are set in deep pockets to support secure connection
  • Assemble the housing over the terminals and tighten the strain relief to finish installation

Technical specifications

Key technical details are provided below for quick reference.

  • NEMA configuration: 5-20C (female)
  • Amperage/Voltage: 20A, 125V
  • Poles/Wires: 2-pole, 3-wire
  • Construction: Nylon/polycarbonate housing; solid one-piece brass contacts
  • Includes: Grounding screw, rubber grommet, cord strain relief

Before You Order

Confirm the model number and that a NEMA 5-20C female, 20A/125V straight-blade connector matches your application and mating plug. This listing describes a single Morris 89615 connector SKU.

  • Verify cord conductor size and insulation type are compatible with the terminal screw capacity before installation
  • Follow applicable electrical codes and safe wiring practices during installation

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 89615 5-20C Straight-Blade Connector, 20A 125V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU89615
Product typeStraight-Blade Connector (female)
NEMA configuration5-20C
Ampere Rating20A
Voltage125V
Poles / Wires2-Pole, 3-Wire
Housing materialNylon / Polycarbonate
ContactsSolid one-piece brass
