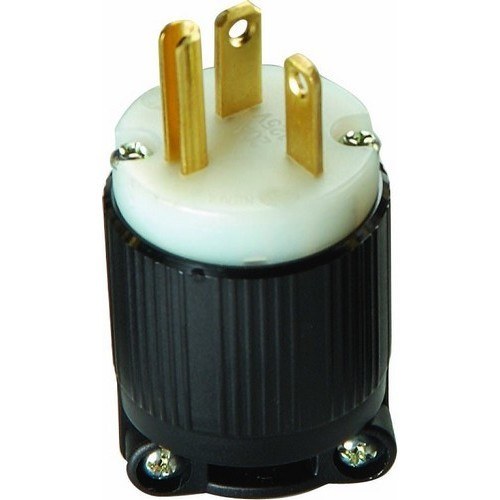

Morris 89614 5-20P Straight-Blade Plug, 20A 125V

(No Ratings)
SKU: 89614
Price: $25.36
Free shipping on orders over $1,500

Description

Product Overview

The Morris 89614 is a NEMA 5-20P straight-blade plug (male) rated 20A, 125V for use on cords and equipment requiring a 2-pole, 3-wire connection.

Durable nylon/polycarbonate housing with solid one-piece brass contacts, heavy-duty terminal screws, clear terminal chamber, and integral cord strain relief for a robust cord-end connection.

Key Features

  • NEMA configuration: 5-20P (male), 2-pole 3-wire
  • Electrical rating: 20A, 125V
  • Housing: rugged nylon/polycarbonate resistant to impact, abrasion, sunlight, and chemicals
  • Contacts: solid one-piece brass with heavy-duty power contacts set in deep pockets
  • Terminal hardware: heavy-duty brass combo-head screws and included grounding screw
  • Assembly features: clear terminal chamber for visual inspection, cord strain relief and rubber grommet

Function and intended use

This Morris 89614 straight-blade plug is designed for terminating cords and connecting equipment to 20A, 125V circuits using the NEMA 5-20P configuration. It provides a standard male connection for 2-pole, 3-wire applications where a grounded 20A receptacle is required.

  • Use case: cord-end plug for appliances, tools or equipment requiring 20A/125V NEMA 5-20P connection
  • Configuration: male plug (not a receptacle or inlet)

Construction and materials

The housing is molded from a nylon/polycarbonate blend selected for resistance to impact, abrasion, sunlight and common chemicals. Contacts are solid one-piece brass for reliable conductivity and reduced heat rise.

  • Housing: nylon/polycarbonate
  • Contacts: solid one-piece brass
  • Includes rubber grommet to help seal the cord entry

Installation and wiring

Wiring is performed by stripping the cord conductors and fastening them to the provided brass terminal screws. The plug includes a clear terminal chamber for visual verification of conductor terminations and a cord strain relief to secure the cable when the housing is assembled.

  • Terminals: heavy-duty brass combo-head screws
  • Assembly: clear terminal chamber lets you see terminals before closing the housing
  • Grounding: grounding screw included

Electrical specifications

Confirm that this plug matches the circuit and equipment requirements before installing. The Morris 89614 is rated and configured as follows:

  • NEMA configuration: 5-20P
  • Amperage/voltage: 20A, 125V
  • Poles/wires: 2-pole, 3-wire
  • Configuration: male (plug)

Before You Order

Confirm the model number and the NEMA configuration (5-20P) match your receptacle and the circuit amperage/voltage requirements before ordering.

  • This listing is for the Morris 89614 straight-blade plug (male) only — verify you need a 5-20P plug for 20A/125V service.
  • Have the cord size and conductor strip lengths available for installation.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 89614 5-20P Straight-Blade Plug, 20A 125V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU89614; '89614
TypeStraight-Blade Plug
NEMA Configuration5-20P
Ampere Rating20A
Voltage125V
Poles / Wires2-Pole 3-Wire
ConfigurationMale
MaterialNylon/Polycarbonate housing; solid one-piece brass contacts
Included ItemsGrounding screw, rubber grommet, cord strain relief
Price25.36
