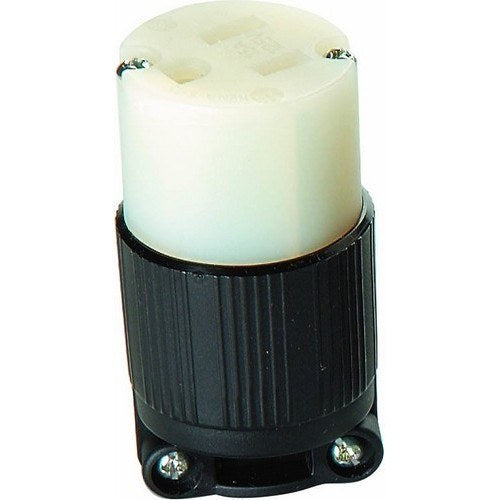

Morris 89613 5-15C Straight-Blade Connector, 15A 125V

(No Ratings)
SKU: 89613
Price: $17.41
Free shipping on orders over $1,500

Description

Product Overview

The Morris 89613 is a female NEMA 5-15C straight-blade connector for 15A, 125V power connections. Its configuration is 2-pole, 3-wire.

The connector has a nylon/polycarbonate housing, one-piece brass contacts, terminal screws, a clear terminal chamber, and cord strain relief.

Key Features

  • Nylon/polycarbonate construction resists impact, abrasion, sunlight, and chemicals.
  • Grooved housing provides a grip surface.
  • Solid one-piece brass contacts and heavy-duty brass combo-head terminal screws.
  • Clear terminal chamber allows visual inspection of terminals.
  • Cord strain relief, rubber grommet, and included grounding screw.

Connector type and configuration

The Morris 89613 is a female 5-15C straight-blade connector rated 15A at 125V, with a 2-pole, 3-wire configuration. It is identified for 15A, 125V NEMA 5-15C power connections on cords and equipment.

Housing, contacts, and cord features

The housing is made of nylon/polycarbonate and is described as resistant to impact, abrasion, sunlight, and chemicals. Its grooved surface provides a grip area.

Electrical connection features include solid one-piece brass contacts, heavy-duty brass combo-head terminal screws, and a clear terminal chamber for visual inspection. A cord strain relief and rubber grommet are included; the grommet is described as sealing from the environment.

  • Heavy-duty power contacts are set in deep pockets.
  • A grounding screw is included.

Cord connection and assembly

The listed installation sequence is to strip the cord, connect line, neutral, and ground to the brass terminal screws, then assemble the housing with the strain relief.

Before You Order

Confirm that the 5-15C female configuration and 15A, 125V rating match the intended cord or equipment connection.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 89613 5-15C Straight-Blade Connector, 15A 125V. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
Catalog Number89613
Product TypeStraight-blade connector
NEMA Configuration5-15C
Ampere Rating15A
Voltage125V
Poles and wires2-pole, 3-wire
ConfigurationFemale
MaterialNylon/polycarbonate housing; brass contacts
