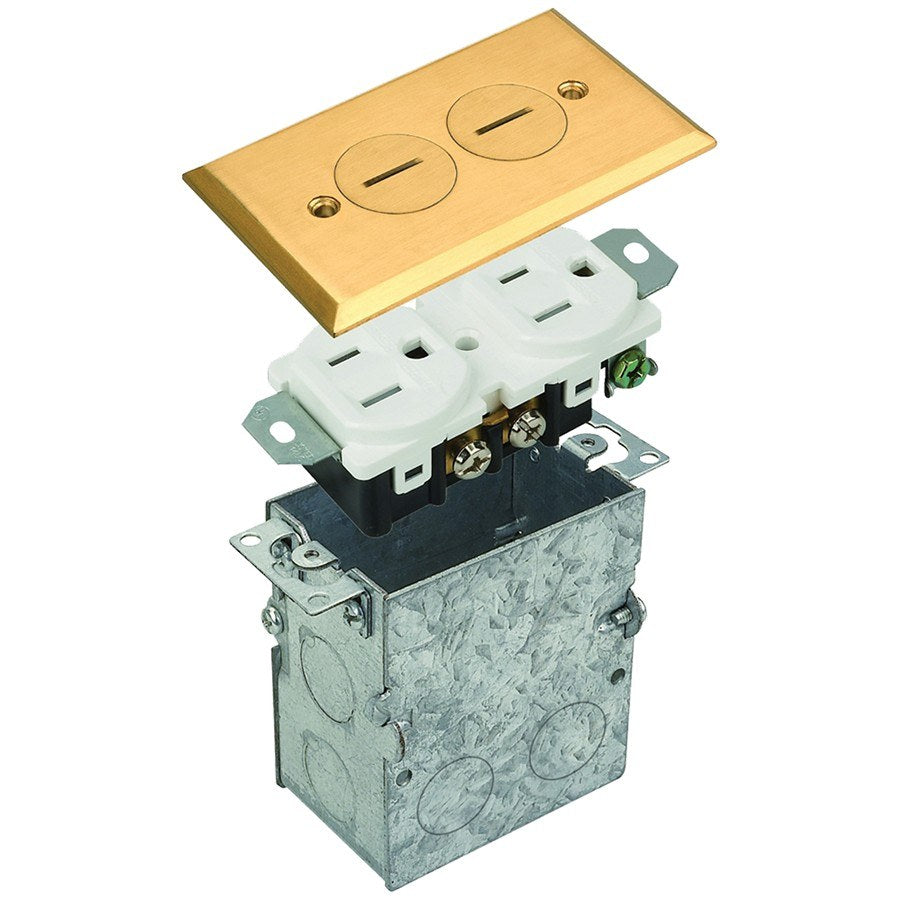

Morris 84002 Recessed Floor Box Assembly, Brass, Screw Lid

Product Overview

The Morris 84002 is a recessed floor box assembly with a screw lid, finished in brass for corrosion resistance and durability. It ships complete with a junction box, a rubber‑gasketed cover and a 15A 125V white tamper‑resistant duplex receptacle.

Designed for tile and carpet floors, the assembly provides a flush, watertight outlet and includes 1/2" conduit knockouts. Hardware is corrosion‑resistant and the product complies with NEMA WD1‑1983.

Key Features

• Heavy‑duty brass construction
• Screw lid with rubber gasket for watertight seal
• Includes junction box and 15A 125V white tamper‑resistant duplex receptacle
• Corrosion‑resistant hardware
• Adjustable design for easier installation
• 1/2" conduit knockouts
• Listed to UL 351B and UL 498; complies with NEMA WD1‑1983

Function and purpose

The Morris 84002 provides a recessed, flush power outlet in floors while protecting connections with a watertight, gasketed screw lid. The included junction box and tamper‑resistant duplex receptacle allow the assembly to be wired and used immediately after installation.

• Flush, recessed power access for floor-mounted equipment or general use
• Gasketed screw lid helps keep debris and moisture out of the box
• Tamper‑resistant receptacle improves safety in public or residential spaces

Typical applications

This floor box is suitable for installation in tile and carpeted floors in offices, retail environments and residential spaces where a durable, flush power outlet is required.

• Office workstations and conference rooms
• Retail sales floors and display areas
• Residential living spaces where floor outlets are preferred

Installation overview

Install the 84002 by mounting the assembly into a compatible floor opening sized for a 3‑1/2" deep switch box, wiring the included receptacle to local electrical code, seating the rubber gasket, and securing the screw lid flush with the finished floor.

• Adjustable design aids alignment with finished floor surfaces
• Includes 1/2" conduit knockouts for conduit entry
• Follow local electrical code and standard wiring practices when connecting the receptacle

Technical specifications

The following specifications summarize the verified technical details for the Morris 84002.

• Brand: Morris
• Catalog number: 84002
• Type: Recessed floor box assembly
• Material/finish: Brass
• Lid: Screw lid with rubber gasket
• Receptacle included: 15A, 125V white tamper‑resistant duplex
• Listings: UL 351B and UL 498
• Conduit knockouts: 1/2"
• Standards: Complies with NEMA WD1‑1983

Before You Order

Confirm the model number and the quantity required before ordering. Ensure the installation opening accommodates a 3‑1/2" deep switch box and that local electrical code is followed for wiring and use of tamper‑resistant receptacles.

• Verify floor type (tile or carpet) and finished floor thickness for proper adjustment
• Confirm conduit routing and that 1/2" knockouts meet project requirements
• Consult an electrician for installation and code compliance
