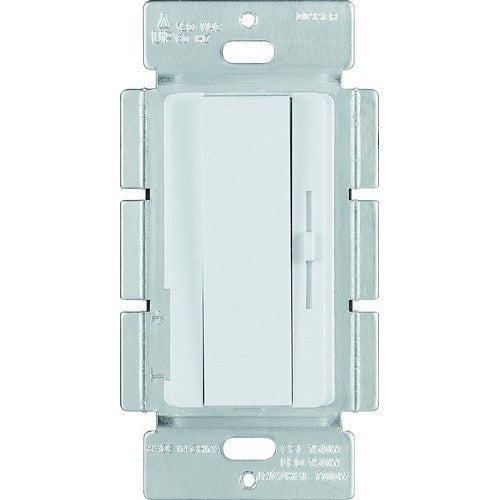

Morris 82860 12V/24V DC LED Dimmer, Rocker, 1-Pole, 60W

(No Ratings)
SKU: 82860
Price: $52.79
Free shipping on orders over $1,500

Description

Product Overview

The Morris 82860 is a compact 1‑pole rocker dimmer engineered for 12V or 24V DC LED and compatible CFL loads up to 60W.

It uses PWM dimming for smooth low‑voltage control, features a decorative polycarbonate housing and face, and includes MOV surge suppression for transient protection.

Key Features

  • 12V or 24V DC operation
  • Rated for 60W LED/CFL load
  • Pulse‑width modulation (PWM) dimming
  • Rocker-style 1‑pole control
  • Decorative polycarbonate housing and face
  • MOV (metal‑oxide varistor) surge suppression

What this dimmer does

The Morris 82860 provides variable light output control for low‑voltage LED and compatible CFL fixtures by modulating the DC supply using pulse‑width modulation (PWM). It operates as a single‑pole rocker switch so the dimmer controls one load circuit from one location.

  • PWM method delivers smooth dimming across the supported range
  • Rocker actuator offers on/off and dimming in a single control

Suitable applications

Use the 82860 with 12V or 24V DC LED lighting in locations that accept a standard wall‑box mounted control. Typical applications include under‑cabinet lighting, cove and accent lighting, LED strip installations, and other low‑voltage DC fixtures where a single‑location dimmer is required.

  • Designed for low‑voltage LED and compatible CFL loads
  • Intended for installations that provide a 12V or 24V DC supply

Electrical and load requirements

Confirm the supply voltage and total fixture wattage before selecting this dimmer. The 82860 is rated for operation on either 12V DC or 24V DC and supports a combined LED/CFL load up to 60 watts.

  • Voltage: 12V DC or 24V DC
  • Maximum load: 60W (LED/CFL)

Installation basics

The 82860 is wired in series with the DC LED load as a single‑pole control and mounts in a standard wall box. Follow wiring diagrams from the equipment manufacturer or project wiring plans for correct polarity and connections.

  • Mounts in a standard wall box
  • Wired inline with the DC load as a 1‑pole switch

Construction and surge protection

The unit uses a decorative polycarbonate housing and face for a clean finished appearance. An internal MOV (metal‑oxide varistor) provides basic surge suppression to help protect the dimmer and connected fixtures from transient voltage spikes.

  • Housing and face material: polycarbonate
  • Surge suppression: MOV included

Before You Order

Confirm the model number and the system voltage (12V or 24V DC) and verify total connected LED/CFL wattage does not exceed 60W before ordering.

  • Verify supply voltage is 12V DC or 24V DC.
  • Confirm combined fixture wattage ≤ 60W.
  • Confirm single‑location (1‑pole) control matches your application.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 82860 12V/24V DC LED Dimmer, Rocker, 1-Pole, 60W. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandMorris
SKU82860; '82860
Product Type12V/24V DC LED Dimmer
ControlRocker
Switching Configuration1‑Pole
Voltage12V DC / 24V DC
LED/CFL Load60W
Dimming MethodPWM (Pulse‑Width Modulation)
Surge SuppressionMOV (Metal‑Oxide Varistor)
Housing / FaceDecorative polycarbonate
