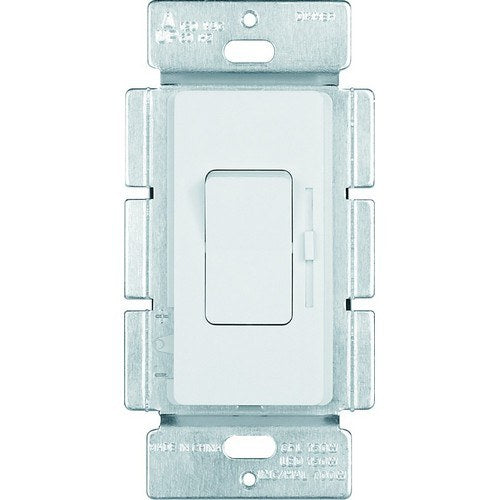

Morris 82854 0-10V LED Dimmer, 1-Pole/3-Way, 120/277V, 6A @ 120V

Product Overview

The Morris 82854 is a wall-mounted 0-10V dimmer with a rocker control configured for 1-pole or 3-way switching. It supports 120/277V systems and is intended to provide 0–10V control for compatible LED, CFL, and electronic self‑ballasted fixtures.

Built-in features include adjustable high-end and low-end trim for tuning the dimming range, MOV surge suppression, and a decorative polycarbonate housing. The product is listed cULus and conforms to California Title 24 as indicated by the product information.

Key Features

• 0-10V dimming control for compatible LED and fluorescent drivers
• 1-pole / 3-way rocker switch configuration
• Operates on 120/277VAC
• LED/CFL rating: 150W
• Incandescent rating: 600W (per product information)
• Current ratings: 6A @ 120V; 3A @ 277V
• Adjustable high-end and low-end trim
• MOV surge suppression
• Decorative polycarbonate housing
• cULus listed; conforms to California Title 24

What this dimmer does

The Morris 82854 provides an analog 0-10V control signal to compatible LED or fluorescent drivers, using a rocker for on/off and dimming. It supports single‑pole or 3‑way switch configurations.

• Rocker control for on/off and dimming
• Sends 0–10V control to driver-based fixtures

Voltage and current ratings

Confirm circuit voltage and load before specifying or wiring this device.

• Line voltage: 120/277VAC
• Current: 6A at 120V; 3A at 277V
• LED/CFL load rating: 150W
• Incandescent load rating: 600W (included in product information)

Where to use it

This dimmer is intended for installations that use 0-10V control for LED or fluorescent fixtures. The product information indicates compliance with California Title 24 where applicable.

• Use with fixtures whose drivers accept a 0-10V control input
• Supports installations requiring 1-pole or 3-way switching

Dimming adjustments and controls

Adjustable high-end and low-end trim allow installers to set the maximum and minimum control points to better match connected fixtures and reduce issues such as flicker or insufficient low-end output.

• High-end trim sets maximum output of the control range
• Low-end trim sets minimum output to improve low-light stability

Basic wiring and installation notes

Installation requires wiring of line and load per the intended 1‑pole or 3‑way configuration and connecting the 0-10V control leads to the fixture driver. Follow local electrical codes and the fixture/driver manufacturer's wiring instructions.

• Connect 0-10V violet/gray leads to the driver's control terminals
• Wire line and load per standard switch wiring practices
• Unit includes MOV surge suppression for transient protection

Before You Order

Verify that your fixture drivers accept a 0-10V control signal and that total connected load does not exceed the device ratings.

• Confirm drivers are 0-10V compatible
• Verify total connected load within 150W for LED/CFL and within current limits at 120/277V
