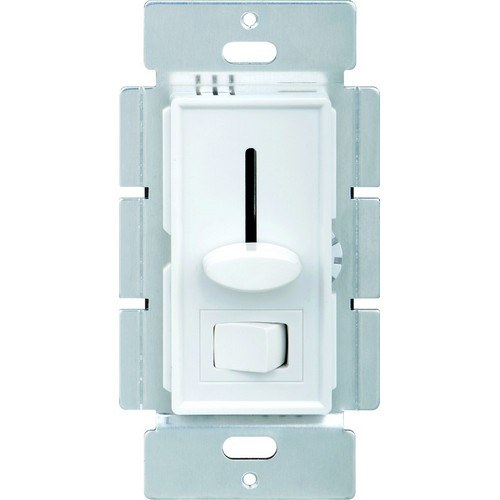

Morris 82846 120V LED Dimmer, 3-Way, 150W, Slide with On/Off Switch
Morris 82846 120V LED Dimmer, 3-Way, 150W, Slide with On/Off Switch
Regular price
$36.94
Regular price
Sale price
$36.94
SKU:82846
Quantity
Couldn't load pickup availability
Morris's 82846 is a 120V LED dimmer with a slide control and an on/off switch, providing 3-way control. It uses TRIAC full-range dimming and is rated 150 watts LED/CFL (700 watts fluorescent). It has a decorative PC housing and includes MOV surge suppression.
Key Features
- LED Compatible
- 120V
- TRIAC Full-Range Dimming
- Slide with On/Off Switch
- 3-Way Control
- Rated 150W LED/CFL (700W Fluorescent)
- Decorative PC Housing
- MOV Surge Suppression
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 82846 |
| Type | 120V LED Dimmer |
| Voltage | 120V |
| Function | 3-Way |
| Control | Slide with On/Off Switch |
| LED/CFL Load | 150W |
| Fluorescent Load | 700W |
| Dimming | TRIAC, Full-Range |
| Protection | MOV Surge Suppression |
Applications
Used to dim 120V LED, CFL, and fluorescent fixtures from multiple locations in homes and offices.
Installation
Wire to the line and load per the 3-way diagram, bonding the ground; pair with a matching 3-way dimmer at the second location.
