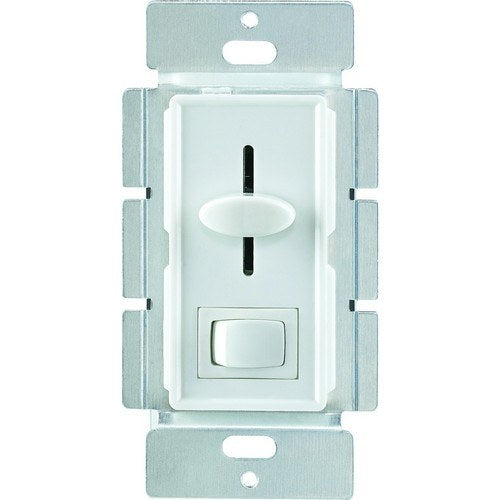

Morris 82841 12V/24V DC LED Dimmer, 3-Way, 60W, Slide with On/Off Switch

Product Overview

The Morris 82841 is a 12V/24V DC dimmer for low‑voltage LED lighting. It uses a slide control with an integrated on/off switch and employs PWM dimming.

The unit is rated for up to 60W LED/CFL load, supports 3‑way (multi‑location) wiring, includes MOV surge suppression, and has a decorative polycarbonate housing and face.

Key Features

• Operates on 12V or 24V DC
• PWM dimming via slide control
• 3‑way (multi‑location) capable
• Integrated on/off switch
• 60W maximum LED/CFL load
• MOV surge suppression
• Decorative polycarbonate (PC) housing and face

What this dimmer does

The Morris 82841 provides adjustable dimming for 12V or 24V DC LED lighting using a slide control with an integrated on/off switch. Dimming is performed with PWM.

Recommended applications

Intended for use with low‑voltage DC LED lighting such as LED strip, under‑cabinet, accent, or display lighting, wired inline with the DC LED load.

• Typical uses: strip lighting, cabinet lighting, accent and display lighting
• Can be used in single‑location or multi‑location setups when paired with a compatible 3‑way dimmer or remote

Performance and protection

Rated for a maximum combined LED/CFL load of 60 watts. Uses PWM dimming and includes an MOV for surge suppression.

• Max load: 60W (LED/CFL)
• Dimming method: PWM (pulse‑width modulation)
• Surge suppression: MOV included

Compatibility and multi‑location wiring

Accepts 12V or 24V DC supply voltage and is wired for 3‑way (multi‑location) control. Multi‑location setups require a compatible 3‑way dimmer or remote at the secondary location and appropriate wiring.

• Voltage: 12V DC or 24V DC
• Function: 3‑way (multi‑location) capable

Installation notes

Install the dimmer inline with the DC LED supply and load following appropriate wiring practices and any included wiring diagram. The housing and face are polycarbonate for visible mounting.

• Wire the dimmer in series with the DC LED supply and load
• Use a compatible 3‑way dimmer or remote for multi‑location control
• Verify LED fixtures or drivers are compatible with PWM dimming

Before You Order

Verify the combined fixture load does not exceed 60W and confirm your installation uses 12V or 24V DC.

• Confirm required voltage (12V or 24V)
• Ensure combined LED load ≤ 60W
• Plan for a compatible 3‑way dimmer or remote if using multi‑location control
