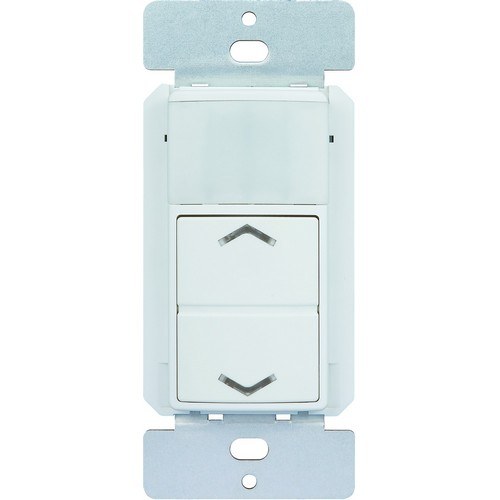

Morris 82657 LED Dimmer with PIR Motion Sensor, 0-120V, 120-277V

Morris's 82657 is a 1-pole LED dimmer with an integrated PIR motion sensor and 0-120V dimming for 120-277V LED, CFL, and electronic self-ballasted lighting, rated 150W LED/CFL and 800W ballast. It has adjustable sensitivity, light-level, and time-delay settings, a 180-degree pattern covering 1200 sq ft, a 3A resistive / 1/8 HP motor rating, MOV surge suppression, a decorative polycarbonate housing, and is UL Listed.

Key Features

• PIR Motion Sensor with Dimming Control
• 0-120V Dimming
• Sensitivity, Light-Level, and Time-Delay Settings
• 180° Coverage, 1200 Sq Ft Area
• LED, CFL, and Electronic Self-Ballasted Applications
• Resistive 3A / Motor 1/8 HP
• MOV Surge Suppression
• Decorative PC Housing
• UL Listed

Specifications

Applications

Used to combine occupancy-based switching with 0-120V dimming for LED and fluorescent lighting in offices and commercial rooms.

Installation

Replace the existing wall switch, connect line, load, neutral, and the dimming leads to the driver, then set sensitivity and time delay.
