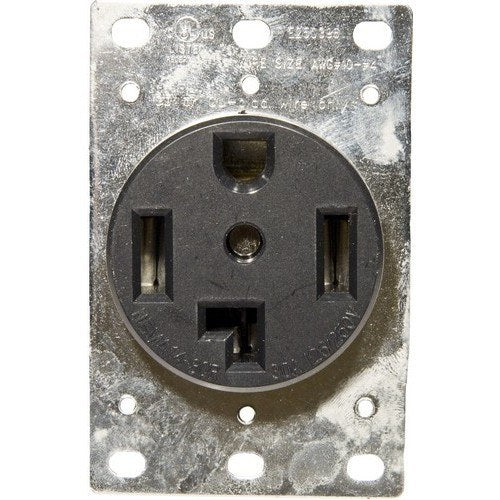

Morris 82522 Flush Dryer Receptacle, 30A 4-Wire, 125/250V, Black

Product Overview

The Morris 82522 is a single‑gang flush dryer receptacle (NEMA 14-30R) rated 30A, 125/250V with a 4‑wire configuration that includes a dedicated grounding terminal.

Designed for supplying 30A electric clothes dryers that require a modern 4‑wire connection, the device finishes in black and mounts flush in a standard single‑gang box.

Key Features

• NEMA 14-30R configuration — 4‑wire (two hots, neutral, dedicated ground)
• Rated 30A, 125/250V for electric dryer circuits
• Single‑gang flush mounting for standard wall boxes
• Black finish

What this receptacle does

The Morris 82522 provides a flush‑mounted wall receptacle that delivers a 30 amp, 125/250 volt circuit in a NEMA 14-30R 4‑wire configuration. It supplies two hot legs, a neutral, and a dedicated grounding conductor required by modern dryer installations.

• Supplies power for electric clothes dryers requiring a 30A 125/250V 4‑wire connection
• Flush single‑gang form factor keeps the outlet recessed for a low‑profile installation

Intended applications

Use this receptacle where a 30A, 125/250V dryer connection is required and a dedicated equipment grounding conductor is part of the circuit. It is intended for connection to appliances that specify a NEMA 14-30R receptacle.

• Residential and light‑commercial dryer outlets that require a 4‑wire grounded connection
• Replacement or new installations in single‑gang flush wall boxes

Installation and wiring

Install the Morris 82522 in a standard single‑gang flush box. Connect the two hot conductors, the neutral, and the equipment ground to the terminals marked on the device, and secure the receptacle to the box per local electrical code and appliance manufacturer instructions.

• Connect two hot legs to the hot terminals, neutral to neutral terminal, and ground to dedicated ground terminal
• Mount flush in a single‑gang box using standard installation hardware
• Follow local electrical codes and dryer manufacturer wiring instructions

Key specifications

The specifications below summarize the manufacturer designation and electrical ratings for quick reference.

• Configuration: NEMA 14-30R (4‑wire)
• Rating: 30A, 125/250V
• Mounting: Single‑gang flush
• Color/finish: Black
• Manufacturer catalog number: 82522
• Brand: Morris

Before You Order

Confirm the model number and that a NEMA 14‑30R 4‑wire receptacle matches your dryer and local electrical code requirements before ordering.

• Verify the appliance requires a 30A, 125/250V NEMA 14‑30R 4‑wire connection
• Confirm you have a single‑gang flush box for mounting and the correct wire sizes and breakers per code
• If replacing an existing receptacle, ensure wiring includes a dedicated grounding conductor

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 82522 Flush Dryer Receptacle, 30A 4-Wire, 125/250V, Black. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
