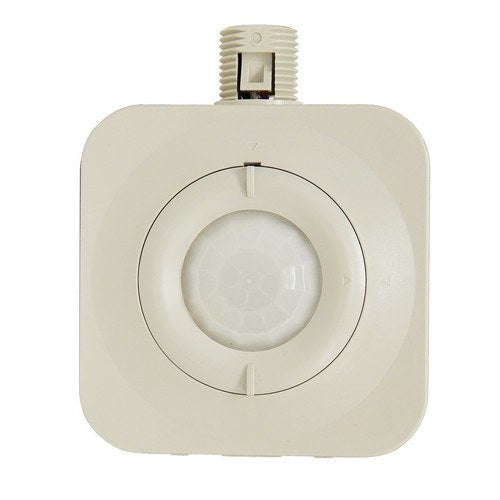

Morris 80556 PIR High-Bay Occupancy Sensor Switch, 360°, 120-277V, White
Description
Product Overview
The Morris 80556 is a white, 120–277V PIR high-bay occupancy sensor switch designed for threaded-stem mounting in a linear high-bay fixture. It detects motion by sensing the difference between body heat and ambient room temperature.
The sensor provides 360° coverage over a 40 ft diameter at a 30 ft mounting height. Its light-level sensitivity and time delay are adjustable; the shutoff delay ranges from 15 seconds to 30 minutes.
Key Features
- 360° PIR occupancy detection; 40 ft diameter coverage at 30 ft height
- Threaded stem for mounting in a linear high-bay fixture
- Adjustable light-level sensitivity and 15-second to 30-minute time delay
- No ground or separate power pack required
- Load rating: 800W at 120V or 1200W at 277V
PIR Detection and Coverage
The Morris 80556 uses passive infrared (PIR) sensing to detect motion by sensing the difference between body heat and ambient room temperature. Its stated coverage is 360° over a 40 ft diameter at a 30 ft height.
High-Bay Mounting and Adjustable Settings
This sensor has a threaded stem for mounting in a linear high-bay fixture. Its light-level sensitivity is adjustable, and the time delay can be set from 15 seconds to 30 minutes.
- No ground is required.
- No separate power pack is required.
Load Ratings and Lighting Compatibility
The 80556 is rated for 800W at 120V and 1200W at 277V. Listed compatible lighting types include incandescent, electronic-ballast fluorescent, CFL, magnetic low voltage, electronic low voltage, and LED.
High-Bay Applications
The 80556 is described for occupancy control in linear high-bay fixtures used in warehouses, gymnasiums, and industrial spaces. The product information states that it conforms to California Title 24 energy code.
Before You Order
Confirm that the Morris 80556’s voltage, load rating, and threaded-stem mounting suit the intended fixture and lighting load.
- Confirm the model number and quantity required before ordering.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Morris 80556 PIR High-Bay Occupancy Sensor Switch, 360°, 120-277V, White. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Morris |
|---|---|
| Catalog Number | 80556 |
| Product Type | PIR high-bay occupancy sensor switch |
| Color | White |
| Voltage | 120–277V |
| Coverage | 360°; 40 ft diameter at 30 ft height |
| Mounting Type | Threaded stem for high-bay fixture |
| Load Rating | 800W at 120V / 1200W at 277V |
| Time delay | 15 seconds to 30 minutes |
| Power pack | Not required |
