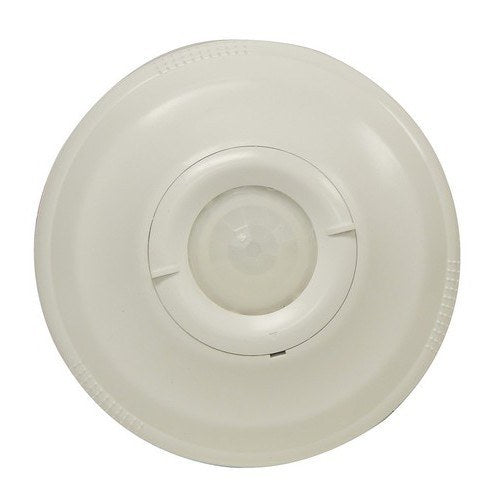

Morris 80552 PIR Ceiling Occupancy Sensor Switch, 360°, 120-277V, White
Morris 80552 PIR Ceiling Occupancy Sensor Switch, 360°, 120-277V, White
SKU:80552
Couldn't load pickup availability
Morris's 80552 is a white 360-degree PIR ceiling occupancy sensor switch that detects motion by sensing the difference between body heat and ambient room temperature, covering a 20 ft diameter at 15 ft height (15 ft diameter at 10 ft height). It provides Auto ON/OFF operation with adjustable light-level and time-delay settings (15 seconds to 30 minutes), needs no ground, and requires no separate power pack. It is rated 800W at 120V / 1200W at 277V.
Key Features
- Passive Infrared (PIR) 360-Degree Ceiling Occupancy Detection
- Auto ON/OFF Operation
- 20 ft Diameter @ 15 ft Height / 15 ft Diameter @ 10 ft Height
- Adjustable Light-Level Sensitivity
- Time Delay Off Adjustable 15 Seconds to 30 Minutes
- No Ground Required
- No Separate Power Pack Required
- Conforms to California Title 24 Energy Code
- Compatible with Incandescent, Electronic Ballast Fluorescent, CFL, Magnetic Low Voltage, Electronic Low Voltage, and LED Lighting
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 80552 |
| Type | PIR Ceiling Occupancy Sensor |
| Color | White |
| Coverage | 360°, 20 ft Dia @ 15 ft Ht |
| Load Rating | 800W @ 120V / 1200W @ 277V |
| Voltage | 120-277V |
| Time Delay | 15 Sec - 30 Min |
| Ground | Not Required |
| Power Pack | Not Required |
Applications
Used for ceiling-mounted automatic lighting control in offices, restrooms, and open areas where 360-degree coverage and Title 24 compliance are needed.
Installation
Mount to the ceiling box, connect line and load (no separate power pack required), and set sensitivity and time delay.
