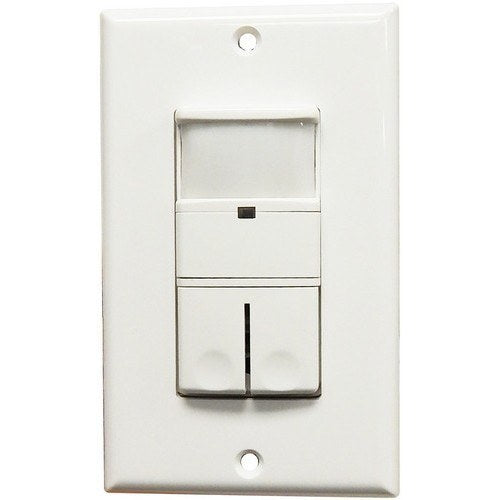

Morris 80548 PIR Occupancy/Vacancy Wall Sensor, Double-Pole, 120-277V, White

Morris's 80548 is a white double-pole PIR occupancy/vacancy wall sensor switch that controls two loads on 120-277V and detects motion by sensing the difference between body heat and ambient room temperature. Button 1 selects Manual ON/Auto OFF and Button 2 provides standby and OCC/VAC selection; it offers a 180-degree pattern, adjustable light-level and time-delay settings (5 seconds to 30 minutes), and is rated 800W at 120V / 1200W at 277V. A decorative wall plate is included.

Key Features

• Passive Infrared (PIR) Double-Pole Occupancy/Vacancy Detection
• Button 1: Manual On/Auto Off; Button 2: Standby and OCC/VAC Selectable
• 30 ft Range When Mounted at 4 ft Height
• LED Indicator for Visibility in Darkened Rooms
• Adjustable Light-Level Sensitivity
• Time Delay Off Adjustable 5 Seconds to 30 Minutes
• Decorative Wall Plate Included
• Conforms to California Title 24 Energy Code
• Compatible with Incandescent, Electronic Ballast Fluorescent, CFL, Magnetic Low Voltage, Electronic Low Voltage, and LED Lighting

Specifications

Applications

Used to control two lighting loads from one location on 120-277V systems in commercial spaces with Title 24 compliance.

Installation

Replace the existing two-pole wall switch, connect the leads, snap on the included wall plate, and set the buttons, sensitivity, and time delay.
